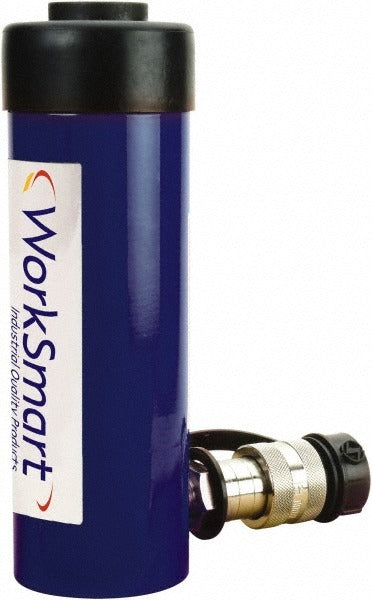

Value Collection PS-MH-HPC1-114 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-114 is a single-acting portable hydraulic cylinder designed for controlled linear force applications in maintenance, fabrication, and field service work. Operating on a single-acting principle, the cylinder extends under hydraulic pressure and retracts by gravity or spring return, making it well suited for pressing, lifting, and clamping tasks. The unit carries an oil capacity of 12.49 cubic inches and a rod diameter of 1.63 inches. Weighing 12.26 pounds, the cylinder is built for portability without sacrificing structural integrity. Hydraulic mechanics, millwrights, and maintenance technicians are the primary installers.

This portable hydraulic cylinder is intended for use in shop, field, and industrial maintenance environments where a compact, repositionable force tool is needed. Typical applications include equipment alignment, press-fit assembly, structural jacking, and controlled load positioning. The lowered height of 7.87 inches and maximum extended height of 11.85 inches make it practical for confined or limited-clearance work areas. It is packaged and sold as a single unit, suitable for both standalone use and integration into a larger hydraulic toolset.

Key Features

• Single-acting operation: extends under pressure, retracts by gravity or return spring
• 12.49 cubic inch oil capacity supports sustained stroke under load
• 1.63 inch rod diameter provides a robust bearing surface for heavy-duty force application
• Plunger internal thread size of 1-8 allows attachment of extension adapters or load saddles
• Collar thread specification of 2-3/4 - 16 enables secure mounting or coupling to compatible fixtures
• Compact lowered height of 7.87 inches suits confined-space and low-clearance installations
• Portable at 12.26 pounds for field and shop use

Compatibility

Designed as an OEM-style portable single-acting hydraulic cylinder suitable for use with compatible hydraulic hand pumps and power units that match the collar and plunger thread specifications of this cylinder.

Installation Notes

Installation and operation should be performed by a qualified hydraulic technician or millwright familiar with hydraulic circuit safety. Relieve all hydraulic pressure in the circuit before connecting or disconnecting the cylinder. Inspect all fittings and threads for damage prior to pressurizing, and ensure the load is properly stabilized before extending the plunger. Never exceed the rated operating pressure for the cylinder as specified by the manufacturer.
