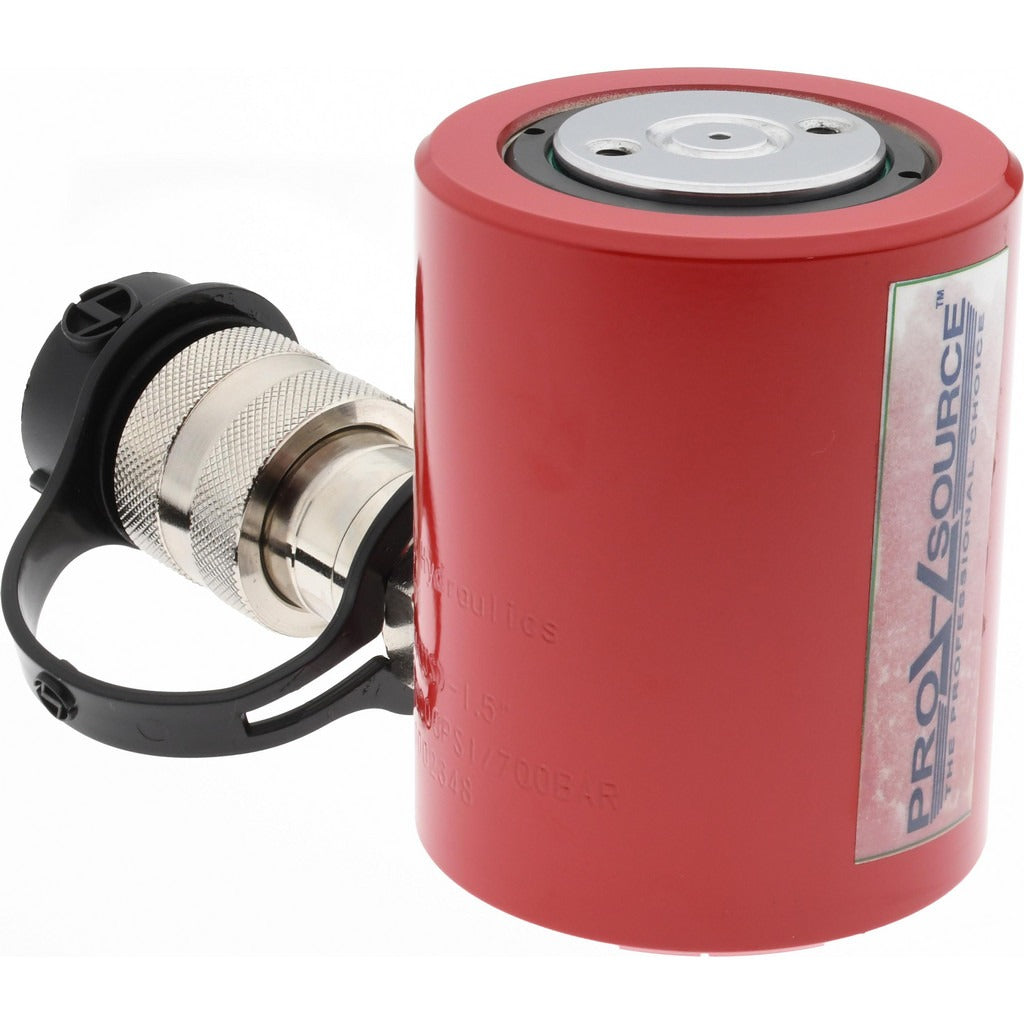

Value Collection PS-MH-HPC1-061 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-061 is a portable hydraulic cylinder designed for controlled load lifting and pressing in maintenance, fabrication, and field service applications. It carries an oil capacity of 3.53 cubic inches and features a 1.5-inch rod diameter, providing reliable force output in a compact form factor. The plunger includes an internal thread of M4 x 0.7 with a thread length of 0.32 inches, allowing attachment of load-contacting accessories. With a lowered height of 3.48 inches and a maximum extended height of 4.98 inches, this cylinder fits into tight spaces where larger hydraulic tooling cannot operate. It is suited for mechanics, millwrights, and maintenance technicians who need portable hydraulic capacity on the job.

This cylinder is well suited for light-duty hydraulic pressing, lifting, and alignment tasks in both shop and field environments. Its compact envelope makes it practical for use under machinery, within structural frames, or on mobile service vehicles where workspace is limited. The threaded plunger tip expands the range of usable attachments, making it adaptable to varied load-contact scenarios. It is a single-acting plunger-style cylinder intended for use with a compatible hydraulic hand pump or power unit.

Key Features

• 3.53 cubic inch oil capacity supports consistent, controlled stroke output
• 1.5-inch rod diameter provides structural rigidity under load
• M4 x 0.7 internal plunger thread with 0.32-inch thread length for accessory compatibility
• Lowered height of 3.48 inches enables use in confined clearance situations
• Maximum extended height of 4.98 inches with 4.4-inch body height
• Portable design suited for both shop bench work and field service tasks

Compatibility

Designed as an OEM-style portable hydraulic cylinder suitable for use with standard single-acting hydraulic hand pumps and power units that match the cylinder port connection.

Installation Notes

Installation and operation should be performed by qualified mechanics or hydraulic system technicians familiar with hydraulic tooling safety practices. Ensure all hydraulic pressure is fully relieved before connecting or disconnecting the cylinder from any pump or circuit. Inspect fittings and seals for damage before each use, and never exceed the rated capacity of the cylinder. Operate only in the orientation specified for single-acting plunger cylinders to prevent seal damage and uncontrolled load movement.
