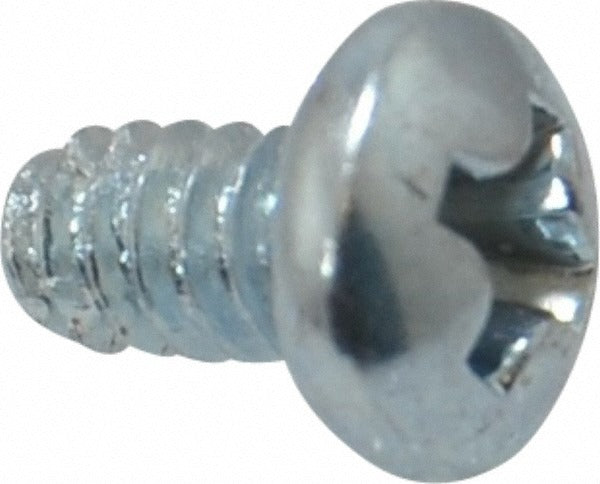

Value Collection PPTCIF0-600250-100BX 6-32 Unc Screw

Product Description

The VALUE COLLECTION PPTCIF0-600250-100BX is a 6-32 UNC thread cutting screw designed for reliable fastening in metal and other hard materials where a pre-tapped hole is not available. The Type F point features a blunt end with cutting flutes that tap threads as the screw is driven, eliminating the need for a separate tapping step. Constructed from Grade 2 steel with a zinc-plated finish, this screw offers corrosion resistance suitable for general indoor mechanical assemblies. It features a pan head profile driven by a Phillips bit. Each box contains 100 screws with a 1/4 inch length under head.

This screw is suited for light-duty metal fastening applications commonly encountered in HVAC equipment assembly, electrical enclosure work, and general sheet metal fabrication. The 6-32 UNC thread size is a standard fastener specification found across a wide range of equipment panels, junction boxes, and control cabinet components. It is appropriate for use by HVAC technicians, electricians, and mechanical contractors performing equipment installation or repair tasks requiring thread-forming fasteners in thin metal substrates.

Key Features

• Type F point cuts threads on installation, no pre-tapping required
• 6-32 UNC thread standard for broad compatibility with common fastener applications
• 1/4 inch length under head for use in thin-gauge metal panels and enclosures
• Pan head profile with Phillips drive for use with standard Phillips bits
• Grade 2 steel construction with zinc-plated finish for corrosion resistance
• Sold in a box of 100 for job-site and shop inventory use

Compatibility

Designed as a standard 6-32 UNC thread cutting fastener suitable for use in general metal fabrication, equipment panel assembly, and light mechanical applications requiring a pan head Phillips-drive screw.

Installation Notes

Install using a Phillips screwdriver or Phillips bit in a power driver set to a controlled torque to avoid stripping the pan head recess. Ensure the base material is appropriate for thread cutting screws and that hole sizing matches the 6-32 UNC specification for proper thread engagement. De-energize any electrical equipment before driving fasteners into or near energized enclosures, following applicable NEC guidelines.
