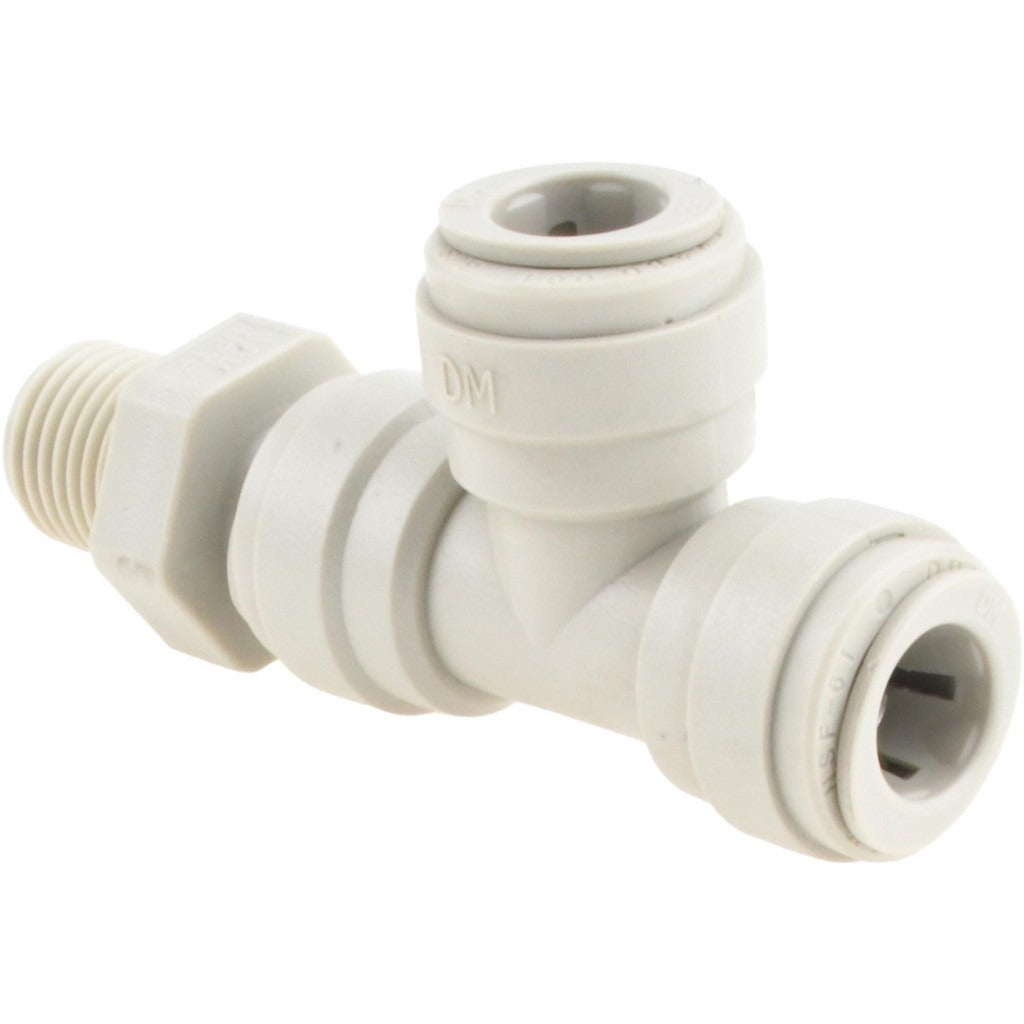

Value Collection PC71GS-64 Male Swivel Run Tee 3/8 in Od

Product Description

The VALUE COLLECTION PC71GS-64 is a push-to-connect male swivel run tee fitting designed for use in pneumatic and fluid distribution lines. Constructed from polyoxymethylene (POM), this fitting accepts tubing with a 3/8 inch outside diameter and connects to threaded ports via a 1/4 inch NPT male thread. The swivel run tee configuration allows the branch outlet to rotate, simplifying alignment during installation. Rated to 150 psi, it is suited for compressed air, water, and other compatible media in light industrial and mechanical service applications. Licensed plumbers, HVAC technicians, and mechanical contractors are the primary installers.

This fitting is used in residential and light commercial plumbing, pneumatic control lines, and HVAC refrigerant-free tubing runs where a tee with a male-threaded branch is required. The push-to-connect design allows tubing to seat and lock without additional tools, reducing installation time on new construction and retrofit projects. The swivel feature accommodates off-angle port orientations commonly encountered in equipment panels and control cabinets.

Key Features

• Push-to-connect design seats 3/8 inch OD tubing without tools or ferrules
• Male swivel run tee configuration with rotatable branch for easy alignment
• 1/4 inch NPT male thread for direct connection to standard threaded ports
• Polyoxymethylene (POM) construction for chemical resistance and dimensional stability
• Rated to 150 psi for use in compressed air and compatible fluid systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic and fluid tubing systems using 3/8 inch OD tubing and 1/4 inch NPT threaded ports.

Installation Notes

Installation is performed by licensed plumbers or qualified mechanical technicians. Depressurize and isolate the system completely before removing or installing any fittings. Ensure tubing is cut square and deburred before inserting into the push-to-connect collet to achieve a secure, leak-free seat. Verify thread compatibility and apply appropriate thread sealant to the NPT connection per applicable IPC and local code requirements.
