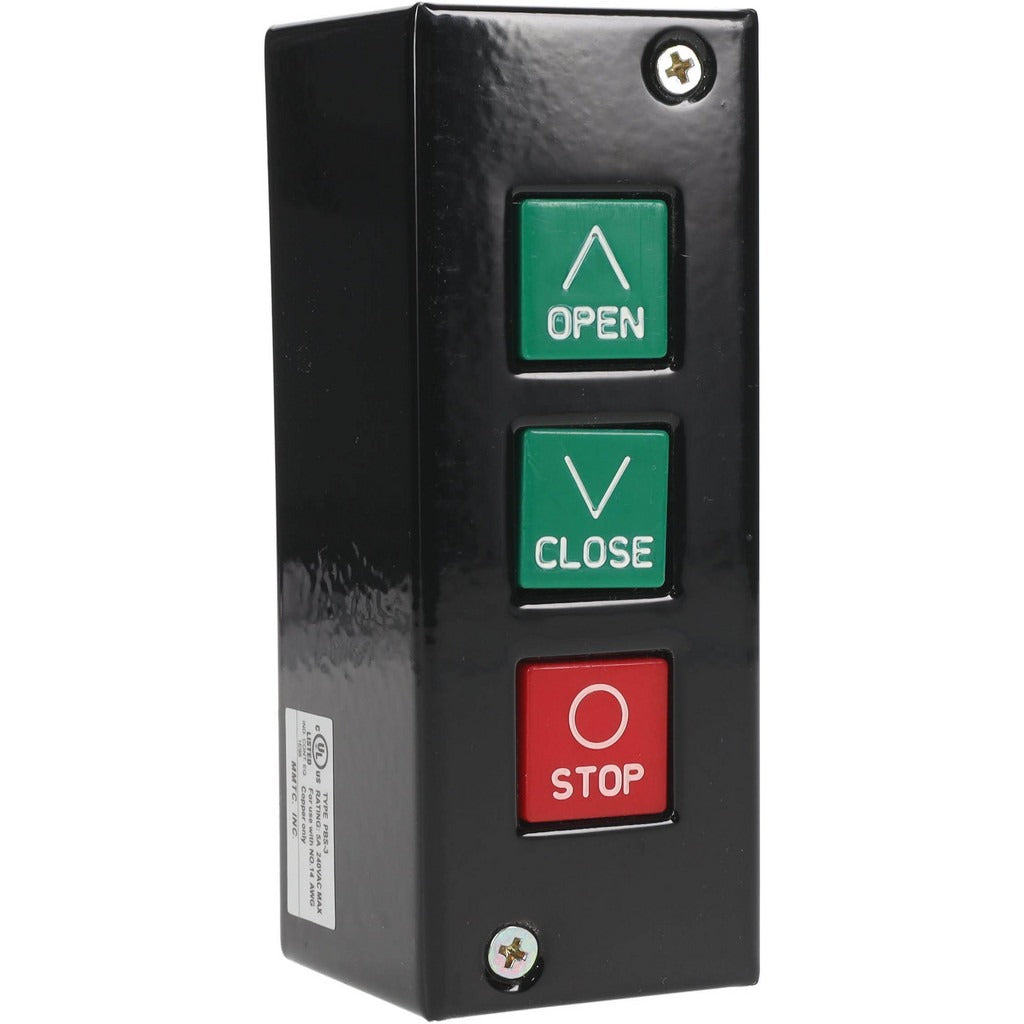

Value Collection PBS-601 Push-button Control Station

Product Description

The VALUE COLLECTION PBS-601 is a momentary push-button control station designed for industrial and commercial motor control applications. It houses three flush push-button operators labeled Open, Close, and Stop, with a NO/NC contact configuration that supports standard maintained-circuit control wiring. Rated at 7 amps and 24 volts AC, the PBS-601 operates within low-voltage control circuits commonly found in motorized door, damper, and actuator systems. The enclosure carries a NEMA 1 rating, suitable for indoor dry locations. Licensed electricians and industrial maintenance technicians are the primary installers of this type of station.

The PBS-601 is intended for indoor industrial and light commercial control panel applications where a dedicated three-function motor control station is required. It is well suited for controlling motorized gates, overhead doors, dampers, or conveyor sections that require discrete Open, Close, and Stop commands. The compact enclosure measures 5.3125 inches tall, 2.375 inches wide, and 1.8125 inches deep, making it suitable for surface mounting on control panels, junction boxes, or equipment enclosures in dry indoor environments.

Key Features

• Three flush push-button operators with Open, Close, and Stop legend markings
• Momentary switch action with NO/NC contact configuration for flexible control circuit wiring
• Rated 7 amps at 24 volts AC for low-voltage control circuit use
• NEMA 1 rated enclosure for indoor dry-location installations
• Compact footprint at 5.3125 x 2.375 x 1.8125 inches
• Black and gray color scheme consistent with standard industrial control station aesthetics

Compatibility

Designed as an OEM-style replacement or new-installation push-button control station for indoor motor control applications requiring a three-operator momentary NO/NC station in a NEMA 1 enclosure.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) Article 430 for motor control wiring. De-energize the control circuit completely before wiring or mounting the station. The NEMA 1 rating limits use to indoor, dry locations only — do not install in areas exposed to moisture, dust, or corrosive atmospheres. Verify that the connected control circuit does not exceed the 7-amp, 24-volt AC rating of the station contacts before energizing.
