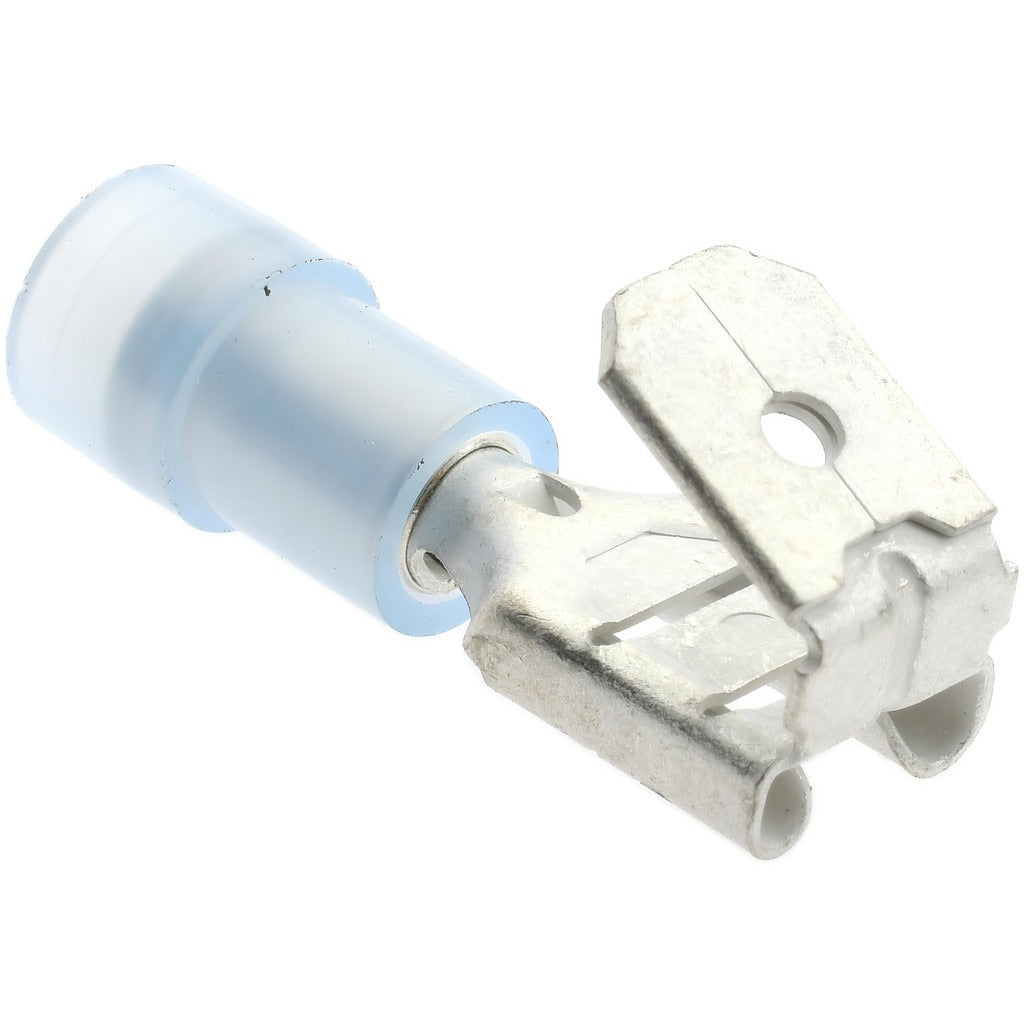

Value Collection PBDNYD2-250 Female Disconnect 16-14 Awg

Product Description

The VALUE COLLECTION PBDNYD2-250 is a partially insulated female disconnect terminal designed for secure, vibration-resistant electrical connections in control wiring, appliance wiring, and light commercial panel work. The double crimp construction grips both the wire conductor and insulation jacket, creating a mechanically sound termination. Blue nylon insulation identifies 16-14 AWG wire range at a glance, following standard color-coding convention. The brass contact provides reliable conductivity and corrosion resistance at the mating interface. Electricians and control technicians use these terminals wherever a quick-disconnect spade connection is needed on 16-14 AWG stranded or solid copper conductors.

These disconnect terminals are suited for residential and light commercial electrical applications including appliance wiring harnesses, HVAC control circuit terminations, panel sub-assemblies, and equipment control boards. The 1/4 inch tab width is one of the most common female disconnect sizes and mates with standard male spade tabs of the same dimension. They are sold individually but carry a minimum order quantity of 25 units, making them practical for service stocking and job-lot use.

Key Features

• Double crimp design grips wire conductor and insulation jacket for a secure mechanical hold
• Partially insulated blue nylon sleeve provides visual AWG range identification and touch protection
• Brass contact material for reliable conductivity and corrosion resistance
• Fits 16-14 AWG wire (1.50 to 2.50 sq mm), covering common control and appliance wire gauges
• 1/4 inch (6.35 mm) tab width matches the most widely used male spade tab standard
• UL Listed and cUL Listed; RoHS Compliant

Compatibility

Designed for use with 16-14 AWG copper conductors and standard 1/4 inch male spade tab terminals in residential and light commercial wiring applications.

Installation Notes

Installation requires a ratcheting or calibrated crimp tool rated for insulated disconnect terminals in the 16-14 AWG range — do not use pliers, as an improper crimp can result in high-resistance joints or pull-out failure. De-energize and lock out the circuit before terminating or removing any disconnect. Follow NEC requirements for connector ratings and wire gauge matching in the applicable installation environment. Inspect each crimped terminal for full conductor capture and a smooth, uniform barrel before mating.
