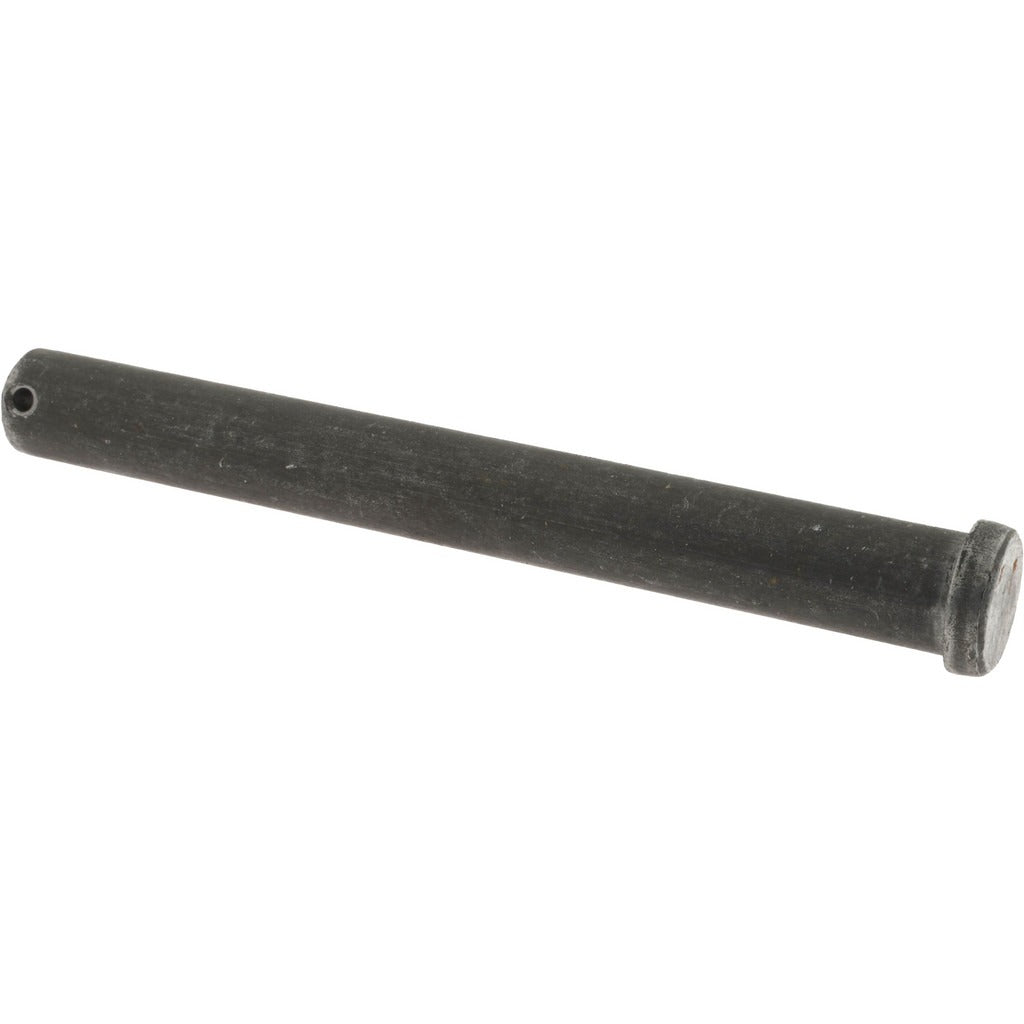

Value Collection P20279 Clevis Pin 3/4 in 6-1/2 in Oal Steel

Product Description

The VALUE COLLECTION P20279 is a standard clevis pin designed for mechanical linkage and fastening applications where a removable, cross-bored pin connection is required. Machined from 1010/1018 steel with an uncoated finish, this pin measures 0.75 inches in diameter with an overall length of 6.5 inches and a usable length of 6 and 11/32 inches. A 5/32-inch cotter pin hole is bored transversely near the retention end. Machinists, millwrights, and maintenance technicians commonly install these pins in clevis-and-rod linkages, actuator connections, and structural pivot joints.

Standard clevis pins of this diameter and length are used across a wide range of industrial and mechanical applications including HVAC actuator linkages, industrial machinery pivot points, hydraulic cylinder rod ends, and general-purpose clevis bracket assemblies. The 0.75-inch diameter and 6.5-inch overall length make this pin suitable for moderate-load pivot connections in both light industrial and commercial maintenance settings where a straightforward, replaceable pin-and-cotter configuration is preferred.

Key Features

• 0.75-inch pin diameter for secure fit in standard 3/4-inch clevis bores
• 6.5-inch overall length with 6 and 11/32 inches of usable length
• 5/32-inch cotter pin hole for positive retention with a standard cotter pin or snap ring
• 1010/1018 steel construction provides reliable strength for mechanical linkage loads
• Uncoated finish suitable for applications where lubrication or field coating will be applied
• Sold individually, no minimum order beyond single-piece quantity

Compatibility

Designed as a standard-dimension clevis pin for use in any clevis bracket or rod-end assembly accepting a 0.75-inch pin diameter with a 5/32-inch retention hole.

Installation Notes

Installation is performed by maintenance technicians or millwrights as part of linkage assembly or replacement work. Always de-energize and lock out any actuator, pneumatic, or hydraulic system before removing or inserting a clevis pin. Insert the pin through aligned clevis and rod-end bores, then secure with an appropriate cotter pin or snap ring through the 5/32-inch hole. Verify that the pin moves freely without binding and that the retention device is fully seated before returning the assembly to service.
