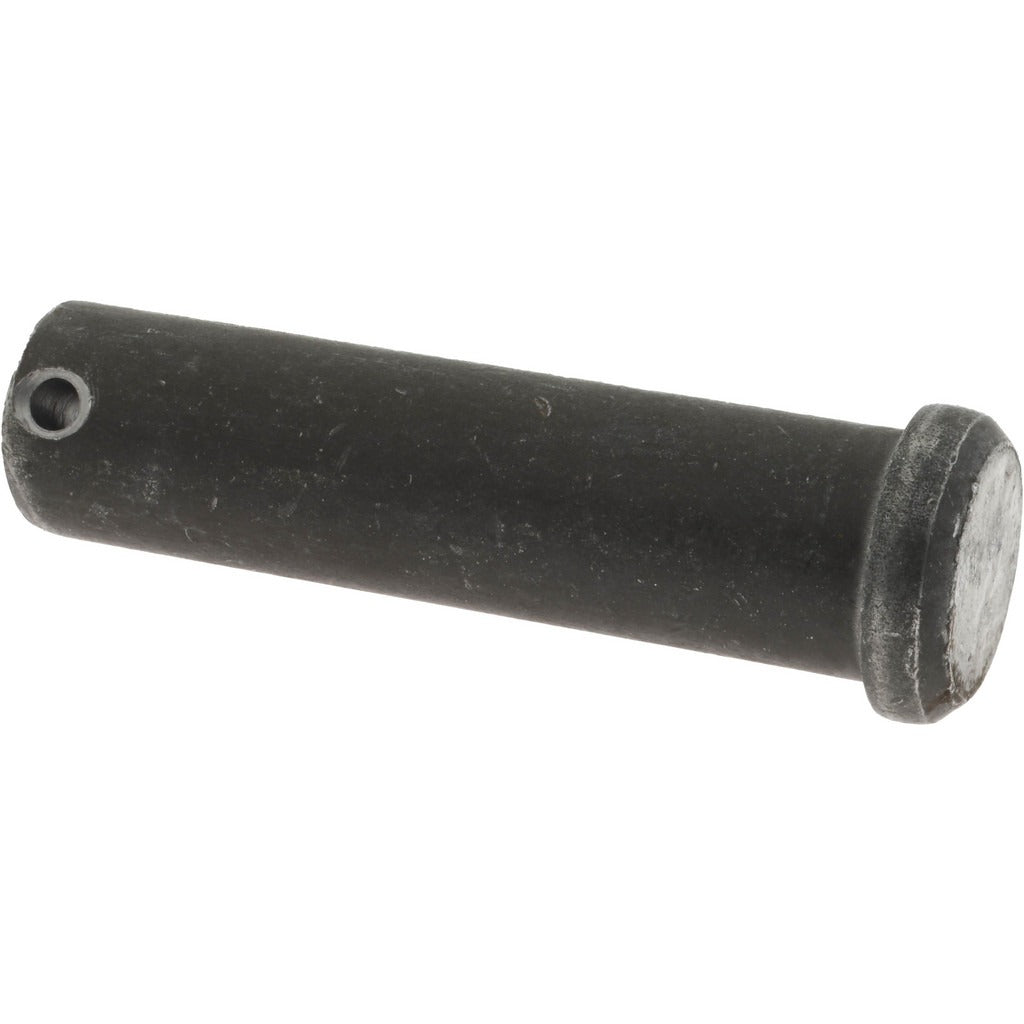

Value Collection P20278 Clevis Pin 3/4 in Steel

Product Description

The VALUE COLLECTION P20278 is a standard clevis pin designed for use in mechanical linkage assemblies where a removable, load-bearing pivot connection is required. Machined from 1010/1018 grade steel with an uncoated finish, this pin measures 0.75 inches in pin diameter and 2.75 inches in overall length (OAL), with a usable length of 2-19/32 inches. A 5/32-inch cotter pin hole is located near the retaining end to accept a cotter pin or snap ring for positive retention. Maintenance technicians, millwrights, and general tradespeople install this type of fastener in clevis brackets, linkage rods, and mechanical actuator assemblies across a wide range of industrial and trade applications.

This clevis pin is suited for use in mechanical linkage systems found in HVAC damper actuators, hydraulic cylinders, control rod assemblies, and structural pivot joints. The uncoated steel construction makes it appropriate for dry or protected interior environments where corrosion exposure is minimal. It is sold individually and is well-suited for maintenance, repair, and replacement work where a standard 3/4-inch clevis pin is required.

Key Features

• 3/4-inch pin diameter for use in standard clevis bracket bores of matching size
• 2-3/4-inch overall length with 2-19/32 inches of usable engagement length
• 5/32-inch cotter pin hole for secure retention with cotter pin or snap ring
• 1010/1018 steel material grade provides reliable strength for typical mechanical linkage loads
• Uncoated finish for use in dry, protected installation environments
• Sold as a single unit with a minimum order quantity of one

Compatibility

Designed as a standard-dimension replacement clevis pin for mechanical linkage assemblies requiring a 3/4-inch diameter clevis pin with a 2-3/4-inch overall length.

Installation Notes

Installation and replacement of clevis pins is typically performed by maintenance technicians or millwrights. Before servicing any linkage assembly, de-energize all connected actuators and relieve any mechanical load or hydraulic pressure acting on the joint. Insert the pin fully through aligned clevis and rod-end bores, then secure with a cotter pin or snap ring through the 5/32-inch retention hole. Verify that the retaining fastener is fully seated and that the pin cannot walk out under operating conditions.
