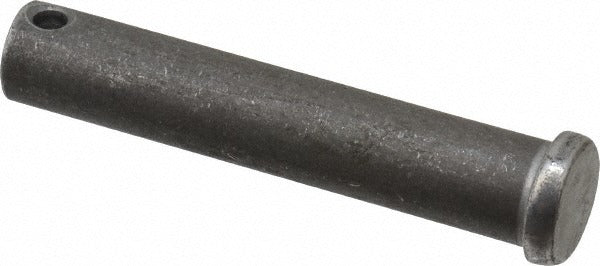

Value Collection P20276 Clevis Pin 0.5 in Steel

Product Description

The VALUE COLLECTION P20276 is a standard clevis pin designed for use in mechanical linkage assemblies where a secure, removable pivot connection is required. Machined from 1010-1018 grade steel with an uncoated finish, this pin measures 0.5 inches in diameter with an overall length of 2.625 inches and a usable length of 2.46875 inches. A 0.15625-inch cotter pin hole is drilled near the tip to accept a standard cotter pin or snap ring for positive retention. Installation is handled by mechanics, millwrights, and maintenance technicians across a wide range of industrial and mechanical applications.

This clevis pin is suited for use in clevis brackets, rod end linkages, yoke assemblies, and similar pivot connections found in industrial equipment, agricultural machinery, and general mechanical systems. Its uncoated steel construction makes it appropriate for dry or lightly lubricated environments where corrosion exposure is minimal. The 1010-1018 steel grade provides adequate shear strength for light-to-medium duty clevis joint applications.

Key Features

• 0.5-inch pin diameter fits standard 0.5-inch clevis and yoke bores
• 2.625-inch overall length with 2.46875 inches of usable length
• 0.15625-inch cotter pin hole for positive retention hardware
• 1010-1018 steel construction for light-to-medium duty shear loads
• Uncoated finish suitable for dry or lightly lubricated assemblies

Compatibility

Designed as a standard-dimension clevis pin for use in mechanical linkage assemblies requiring a 0.5-inch diameter pivot pin with a 2.625-inch overall length and a 0.15625-inch cotter pin hole.

Installation Notes

Installation is performed by mechanics or maintenance technicians using standard hand tools. De-energize and lock out any associated equipment before removing or installing clevis pins in active linkage assemblies. Always secure the pin with an appropriate cotter pin or snap ring through the retention hole before returning the assembly to service. Do not use this pin in applications requiring a coated or hardened fastener without verifying material suitability.
