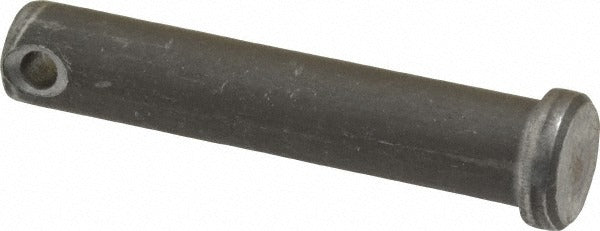

Value Collection P20272 Clevis Pin 7/16 in Steel

Product Description

The VALUE COLLECTION P20272 is a standard clevis pin designed for use in mechanical linkage assemblies, fastening applications, and pivot connections across industrial and trade environments. Machined from 1010-1018 grade steel with an uncoated finish, this pin measures 7/16 inches in diameter with an overall length of 2-1/4 inches and a maximum usable length of 2-3/32 inches. A 5/32 inch cotter pin hole is provided near the retaining end to accept a cotter pin or hitch pin clip for positive retention. Millwrights, maintenance technicians, and general tradespeople install these pins in clevis brackets, rod ends, and linkage connections throughout HVAC, mechanical, and light industrial systems.

This clevis pin is suited for residential and commercial mechanical applications where a secure, removable pivot or hinge point is needed. Typical uses include clevis bracket assemblies, actuator linkages, control rod connections, and similar load-bearing pivot points. The uncoated steel construction is appropriate for dry or lightly protected indoor environments. The 1010-1018 steel grade provides adequate strength for standard mechanical fastening duties in light-to-moderate load applications.

Key Features

• 7/16 inch pin diameter for precise fit in standard clevis bracket bores
• 2-1/4 inch overall length with 2-3/32 inch maximum usable length
• 5/32 inch cotter pin hole for positive mechanical retention
• 1010-1018 grade steel construction for reliable light-to-moderate load performance
• Uncoated finish suited for dry or protected indoor environments
• Standard clevis pin geometry compatible with common clevis and rod-end hardware

Compatibility

Designed as a standard-geometry clevis pin for use with clevis brackets, rod ends, and linkage assemblies that accept a 7/16 inch pin diameter.

Installation Notes

Clevis pins are installed by maintenance technicians and millwrights as part of mechanical linkage and pivot assemblies. Always relieve tension or load from the linkage before removing or installing the pin. Secure the pin after installation using a properly sized cotter pin or hitch pin clip inserted through the 5/32 inch hole to prevent backing out during operation. Inspect the mating clevis bore and pin for wear or deformation before reinstalling.
