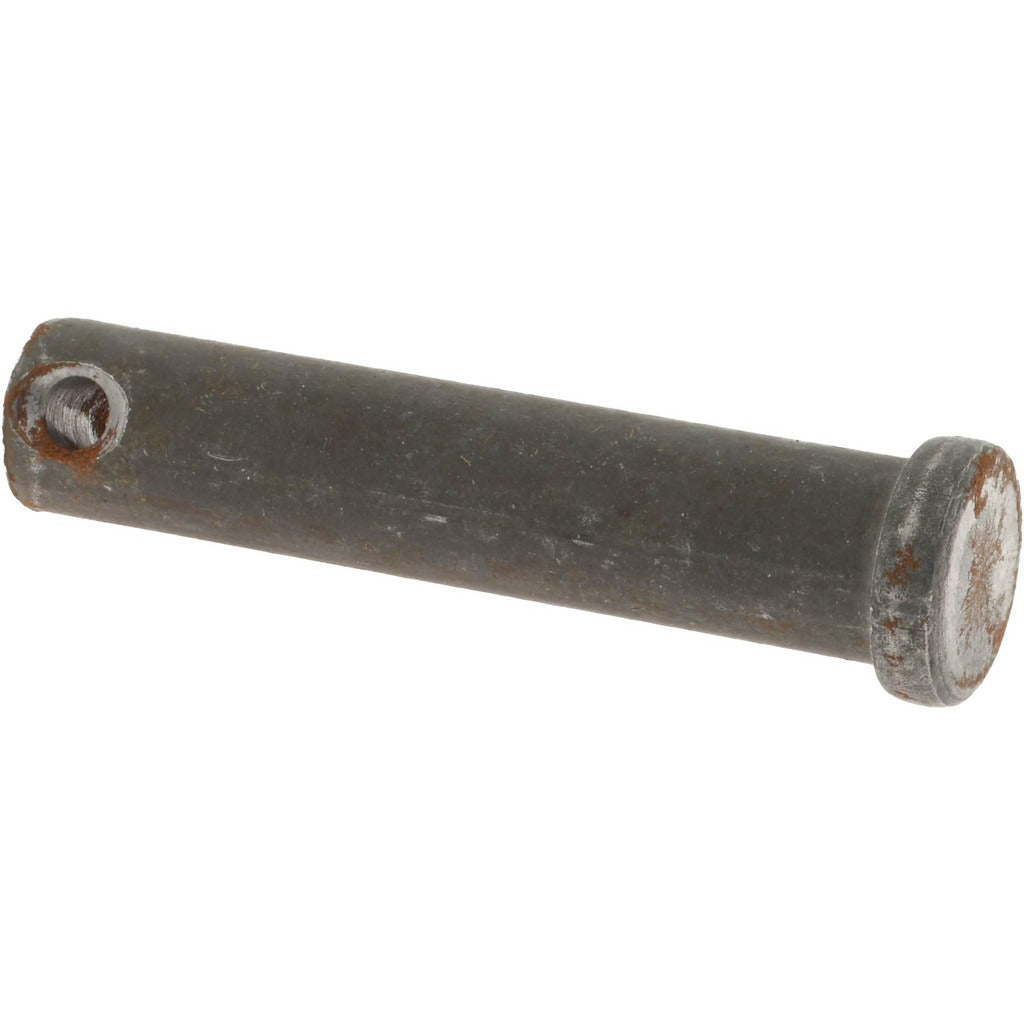

Value Collection P20271 Clevis Pin 7/16 in 2 in Oal Steel

Product Description

The VALUE COLLECTION P20271 is a standard clevis pin designed for use in mechanical linkage, hinge, and fastening applications where a removable, retained pin is required. Machined from 1010/1018 steel with an uncoated finish, this pin measures 7/16 inches in diameter and 2 inches overall length (OAL), with a usable length of 1-27/32 inches. A 5/32 inch cotter pin hole is provided at the retaining end. This type of pin is a staple in industrial maintenance, fabrication shops, and mechanical assembly work performed by millwrights, maintenance technicians, and general tradespeople.

Standard clevis pins are used wherever two components must be joined through a clevis or yoke and released or adjusted periodically. Common applications include linkage arms, actuator clevises, trailer hitches, agricultural equipment, and structural rigging. The 7/16 inch diameter and 2 inch OAL make this pin suited for light-to-medium duty mechanical connections. This pin is sold individually but must be ordered in multiples of 5.

Key Features

• 7/16 inch pin diameter for a secure fit in standard clevis bores
• 2 inch overall length with 1-27/32 inches of usable shank length
• 5/32 inch cotter hole for positive retention with a cotter pin or hairpin clip
• Manufactured from 1010/1018 steel for reliable strength in light-to-medium duty use
• Uncoated finish suitable for use in dry or lightly oiled environments

Compatibility

Designed as a standard-dimension clevis pin for use in mechanical linkage and fastening assemblies requiring a 7/16 inch pin diameter and approximately 2 inch overall length.

Installation Notes

Installation is typically performed by a maintenance technician or machinist as part of a mechanical assembly or repair. Ensure the clevis bore and pin diameter are clean and free of burrs before insertion. Always secure the pin with an appropriately sized cotter pin or hairpin clip through the retaining hole to prevent unintended withdrawal. Relieve any load or tension on the linkage before removing or installing this pin.
