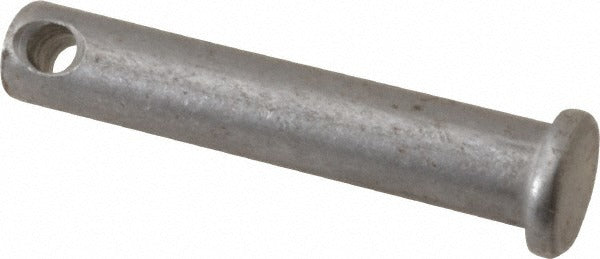

Value Collection P20259 Clevis Pin 5/16 in Steel

Product Description

The VALUE COLLECTION P20259 is a standard clevis pin designed for use in linkage assemblies, load-bearing connections, and mechanical pivot applications across a wide range of industrial and trade settings. Manufactured from 1010-1018 grade steel with an uncoated finish, this pin measures 5/16 inches in diameter and has an overall length of 1-5/8 inches. The maximum usable length is 1-31/64 inches, and a 9/64 inch cotter pin hole is pre-drilled near the retaining end. It is installed by maintenance technicians, millwrights, and trade professionals working on mechanical linkage systems, HVAC damper assemblies, and similar equipment.

This clevis pin is suited for light-duty to medium-duty pivot and connector applications in residential and commercial mechanical systems. It functions as a retention pin in clevis-and-yoke assemblies, rod ends, and linkage bars where a small-diameter steel fastener is required. Typical installations include HVAC actuator linkages, control arm connections, and general mechanical assemblies requiring a 5/16 inch pin diameter. This SKU is sold individually, with a minimum order quantity of 5 pieces.

Key Features

• 1010-1018 grade steel construction for reliable strength in pivot and linkage applications
• 5/16 inch pin diameter fits standard clevis and yoke fittings of matching bore size
• Pre-drilled 9/64 inch cotter pin hole for positive retention after installation
• 1-31/64 inch maximum usable length accommodates common clevis assembly thicknesses
• Uncoated finish — suitable for dry or protected indoor mechanical environments

Compatibility

Designed as a standard-duty replacement or service clevis pin for mechanical linkage assemblies requiring a 5/16 inch diameter pin with a 9/64 inch cotter hole and 1-5/8 inch overall length.

Installation Notes

Installation is performed by qualified maintenance or trade personnel. Depressurize or de-energize any connected mechanical or pneumatic system before removing or installing clevis pins. Insert the pin through aligned clevis and yoke bores, then secure with an appropriately sized cotter pin through the 9/64 inch hole — never reuse a deformed or bent cotter pin. Verify pin diameter matches the clevis bore to prevent slop or binding under load.
