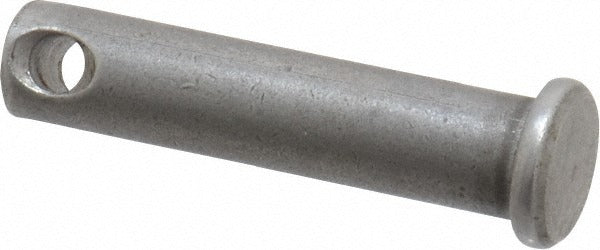

Value Collection P20258 Clevis Pin 5/16 in Steel

Product Description

The VALUE COLLECTION P20258 is a standard clevis pin used to secure clevis brackets, linkages, and pivot assemblies in mechanical, HVAC, and general industrial applications. The pin measures 5/16 inch in diameter with an overall length of 1-3/8 inches and a usable length of 1-15/64 inches. It is manufactured from 1010-1018 grade steel with an uncoated finish. A 9/64 inch hole near the pin end accepts a cotter pin or snap ring to retain the pin in the clevis. This is a widely used fastener for technicians and tradespeople who need a reliable, off-the-shelf mechanical pin for linkage and hinge connections.

This clevis pin is suited for residential and light commercial mechanical assemblies including HVAC damper linkages, actuator arms, control rod connections, and similar pivot or hinge points. Its uncoated steel construction makes it appropriate for dry, indoor environments where corrosion resistance is not a primary requirement. The pin is a stock item commonly used in quantity for assembly work or field service.

Key Features

• 5/16 inch pin diameter for standard clevis bracket fitment
• 1-3/8 inch overall length with 1-15/64 inch usable length
• 9/64 inch retention hole for cotter pin or snap ring
• 1010-1018 grade steel construction for reliable shear strength
• Uncoated finish suitable for dry indoor mechanical assemblies

Compatibility

Designed as a standard-dimension clevis pin for use in mechanical linkage, pivot, and hinge assemblies requiring a 5/16 inch pin diameter.

Installation Notes

Clevis pins are installed by hand or with light tooling; no power tools are typically required. Always install a properly sized cotter pin or snap ring through the retention hole after the clevis pin is seated to prevent backing out during operation. Inspect the clevis bracket bore for wear or elongation before installing a replacement pin. Shut down and de-energize any actuator or linkage system before servicing mechanical fasteners.
