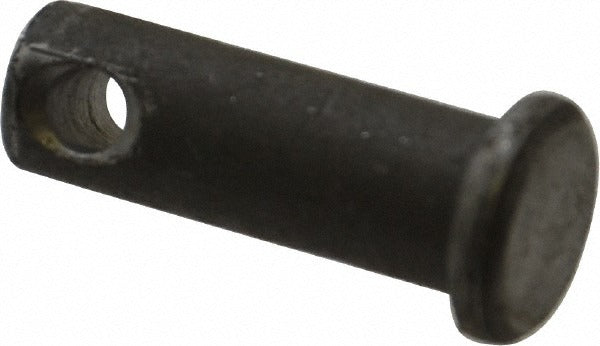

Value Collection P20254 Clevis Pin 5/16 in Steel

Product Description

The VALUE COLLECTION P20254 is a standard clevis pin designed for use in mechanical linkage, fastening, and pivot applications across a wide range of industrial and trade environments. Machined from 1010-1018 grade steel with an uncoated finish, this pin measures 5/16 inch in diameter with an overall length of 7/8 inch and a usable length of 47/64 inch. A 9/64 inch hole accommodates a cotter pin or snap ring to retain the pin in its installed position. Mechanics, millwrights, and maintenance technicians working on machinery, linkages, and structural assemblies rely on clevis pins like this one for secure, removable connections.

This clevis pin is suited for light-duty to medium-duty mechanical linkage connections in industrial machinery, agricultural equipment, material handling systems, and general fabrication. The compact 5/16 inch diameter and 7/8 inch overall length make it appropriate for applications where space is limited and a clean, removable pivot point is required. The uncoated steel construction is standard for interior or protected environments where corrosion is not a primary concern.

Key Features

• 5/16 inch pin diameter for precise fitment in standard clevis bracket bores
• 7/8 inch overall length with 47/64 inch usable length for compact linkage applications
• 9/64 inch cross hole sized for cotter pin or snap ring retention
• 1010-1018 steel material grade provides consistent machinability and strength
• Uncoated finish suitable for protected or interior installations

Compatibility

Designed as a standard clevis pin replacement or new installation component for mechanical linkage assemblies requiring a 5/16 inch pin diameter and 7/8 inch overall length.

Installation Notes

Installation is typically performed by mechanics or maintenance technicians using standard hand tools. Always de-energize or lock out any machinery before servicing linkage connections. Insert the clevis pin through aligned bores and secure with an appropriately sized cotter pin or snap ring through the 9/64 inch cross hole. Verify that the usable length is sufficient to allow full retention hardware engagement before returning the assembly to service.
