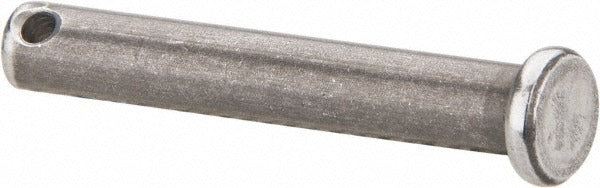

Value Collection P20243 Clevis Pin 0.25 in Steel

Product Description

The VALUE COLLECTION P20243 is a standard clevis pin designed for use in linkage assemblies, rod ends, and mechanical fastening applications where a removable, load-bearing pivot point is required. Machined from 1010-1018 grade steel with an uncoated finish, this pin measures 0.25 inches in pin diameter and 1.625 inches in overall length, with a usable length of 1.53 inches. A 0.09375-inch cotter pin hole is drilled near the end to accept a standard cotter pin or hairpin clip for retention. Maintenance techs, millwrights, and general trade professionals install this type of pin in equipment linkages, bracket assemblies, and control rod connections.

This clevis pin suits residential and light commercial mechanical applications where a compact, low-cost pivot fastener is needed. Typical installations include HVAC damper linkages, control arm connections, and general mechanical assemblies where a 0.25-inch diameter removable pin is specified. The uncoated steel construction is appropriate for indoor and protected environments. This pin is sold individually but requires a minimum order of 25 units.

Key Features

• 0.25-inch pin diameter for standard clevis and rod-end fitment
• 1.625-inch overall length with 1.53-inch usable length
• 0.09375-inch cotter hole for secure retention with a cotter pin or clip
• 1010-1018 steel material grade provides reliable strength for general-duty pivot applications
• Uncoated finish suitable for dry or protected indoor environments
• Compact design fits tight linkage assemblies and bracket connections

Compatibility

Designed as a standard-dimension clevis pin for general mechanical linkage and fastening applications requiring a 0.25-inch pin diameter.

Installation Notes

Installation is typically performed by maintenance technicians or millwrights as part of linkage or control rod assembly work. Power down or de-energize any associated mechanical or electrical system before servicing connected linkages. Insert the pin through aligned clevis and rod-end bores, then secure with an appropriate cotter pin or hairpin clip through the retention hole. Verify that the retaining clip is fully seated before returning the assembly to service.
