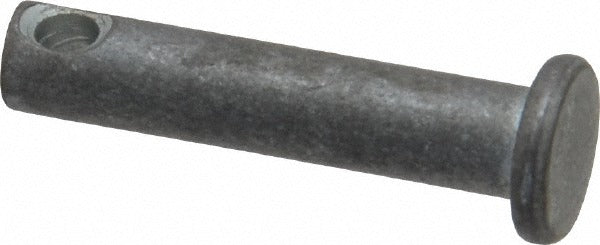

Value Collection P20230 Clevis Pin 3/16 in Steel

Product Description

The VALUE COLLECTION P20230 is a standard clevis pin used to secure linkages, clevises, and pivot connections in mechanical assemblies. The pin measures 3/16 inches in diameter with an overall length of 7/8 inches and a usable length of 25/32 inches. It is manufactured from 1010-1018 grade steel with an uncoated finish, making it suitable for general-purpose fastening applications in light industrial, agricultural, and HVAC mechanical linkage work. A 3/32 inch cotter pin hole is included for positive retention. Maintenance technicians and mechanical trades install this pin wherever a standard clevis connection is required.

This clevis pin is suited for residential and light commercial applications involving damper linkages, valve actuators, control arm pivot points, and general mechanical assemblies. It is a common hardware item in HVAC damper control mechanisms, where small-diameter clevis pins connect actuator rods to damper blade linkages. The uncoated steel construction is appropriate for dry, indoor service environments.

Key Features

• 3/16 inch pin diameter for standard clevis and linkage fittings
• 7/8 inch overall length with 25/32 inch usable length
• 3/32 inch cotter pin hole for positive mechanical retention
• 1010-1018 grade steel construction for reliable tensile strength in light-load pivot applications
• Uncoated finish suitable for dry indoor service environments

Compatibility

Designed as a standard-dimension clevis pin for general mechanical linkage applications requiring a 3/16 inch diameter pin with a 3/32 inch cotter pin hole.

Installation Notes

Installation is performed by mechanical or HVAC service technicians. De-energize any actuator or motorized component before removing or installing clevis pins in control linkages. Insert the pin through the aligned clevis and mating component, then secure with an appropriate cotter pin through the retention hole to prevent backing out during operation. Inspect the mating clevis bore and the pin for wear or deformation before reuse.
