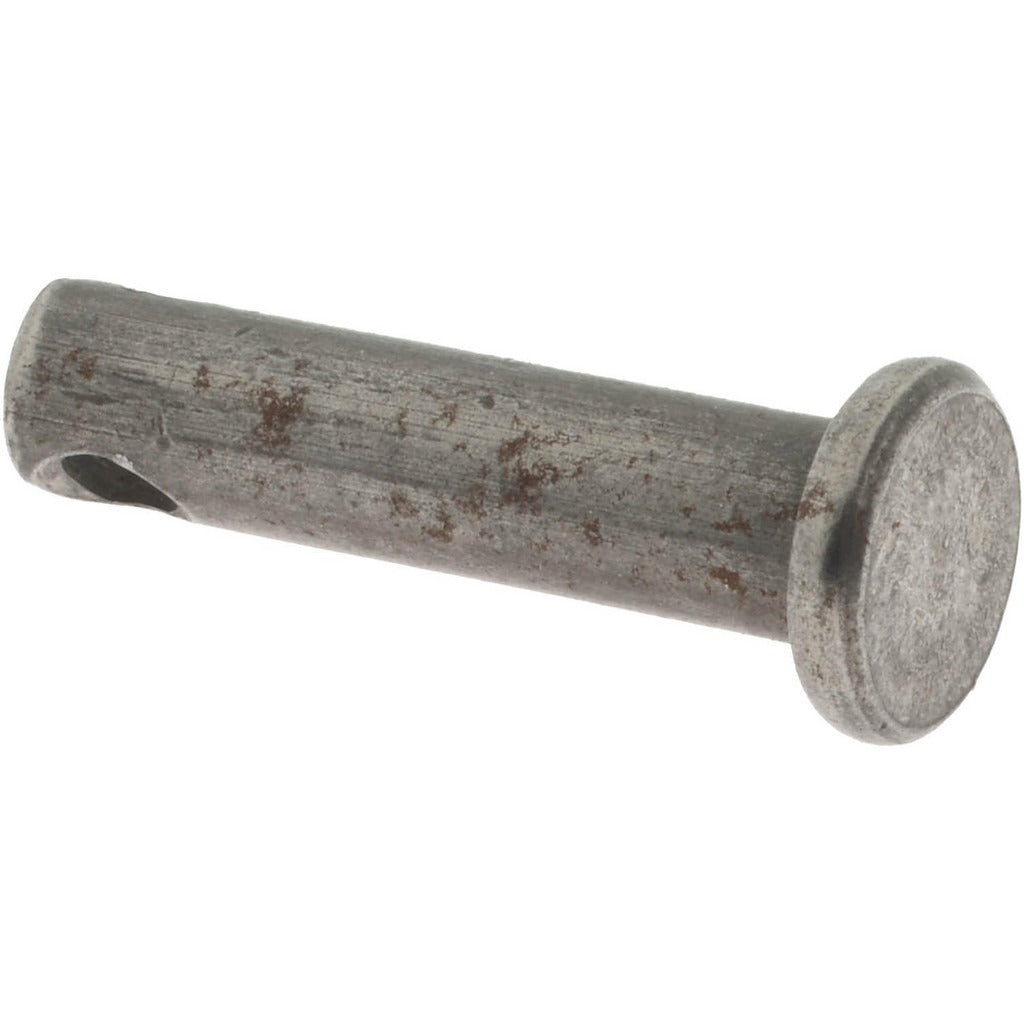

Value Collection P20229 Clevis Pin 3/16 in Steel

Product Description

The VALUE COLLECTION P20229 is a standard clevis pin designed for use in mechanical linkage assemblies where a removable, load-bearing pivot point is needed. Machined from 1010/1018 steel with an uncoated finish, this pin measures 3/16 inches in diameter with an overall length of 3/4 inches and a usable length of 21/32 inches. The cotter pin hole diameter is 3/32 inches. It is a straightforward, utilitarian fastener suited for light-to-medium duty clevis connections in a wide range of mechanical, industrial, and trade applications. Machinists, millwrights, and field technicians regularly stock these pins as consumable hardware.

This clevis pin is appropriate for use in rod-end and clevis bracket assemblies found in HVAC damper linkages, valve actuator arms, control rod mechanisms, and general mechanical assemblies. The compact 3/4 inch overall length makes it suitable for tight-clearance installations. At 3/16 inches in diameter, this pin fits standard light-duty clevis fittings of the corresponding bore size. It ships in a minimum order quantity of 25 pieces, making it practical for stocking as shop or service van inventory.

Key Features

• 3/16 inch pin diameter fits standard light-duty clevis fittings
• 3/4 inch overall length with 21/32 inch usable length for tight-clearance linkage installations
• 3/32 inch cotter pin hole for positive retention with standard cotter pins or hitch pins
• 1010/1018 steel construction provides adequate shear strength for light-to-medium duty mechanical linkage use
• Uncoated finish — suitable for protected or indoor mechanical environments
• Sold in multiples of 25, ideal for stocking as consumable fastener inventory

Compatibility

Designed as a standard clevis pin for light-duty mechanical linkage assemblies requiring a 3/16 inch diameter pivot pin with a 3/32 inch cotter hole.

Installation Notes

Clevis pins of this type are installed by mechanically inclined technicians across HVAC, plumbing, and general mechanical trades. Before servicing any linkage assembly, de-energize the associated actuator or control system and relieve any mechanical tension in the linkage. Insert the pin through the aligned clevis and rod-end bores, then secure with an appropriately sized cotter pin or hitch pin through the 3/32 inch retention hole. Do not use this pin in applications where the shear load, environment, or required finish exceeds the uncoated 1010/1018 steel specification.
