Value Collection P20209 Clevis Pin 1/4 in Stainless Steel

Product Description

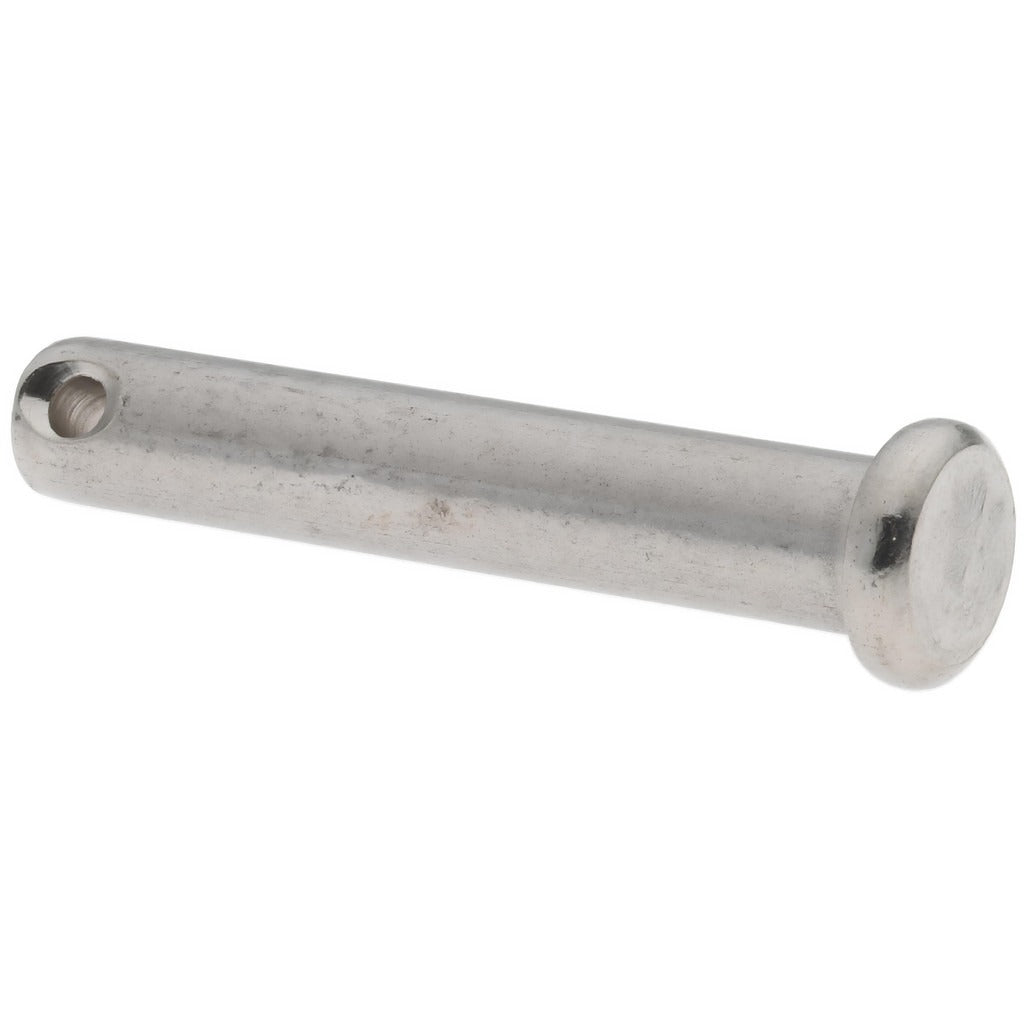

The VALUE COLLECTION P20209 is a standard clevis pin machined from 18-8 stainless steel with an uncoated finish. It measures 0.25 inches in pin diameter and 1.375 inches in overall length (OAL), with a usable length of 1.281 inches and a cotter pin hole diameter of 0.094 inches. Clevis pins are used to create a pivot or hinge connection between two clevis-style bracket tabs, typically retained by a cotter pin or hitch pin through the cross hole. The 18-8 stainless steel construction provides corrosion resistance in wet, chemical-exposure, or outdoor service environments. This pin is appropriate for light-duty mechanical linkages across HVAC, plumbing, pool equipment, and general trade applications.

This clevis pin suits residential and commercial installations where a removable pivot fastener is needed in a bracket, yoke, or linkage assembly. Typical applications include actuator linkages, damper pivot points, and rod-end connections on mechanical equipment. Its compact size and corrosion-resistant material make it well-suited for pool and water treatment equipment, HVAC damper linkages, and similar service environments where standard carbon steel fasteners would corrode.

Key Features

• 18-8 stainless steel construction for corrosion resistance in wet and chemical-exposure environments
• Uncoated finish — no plating to flake or degrade over time
• 0.25 inch pin diameter fits standard clevis bracket and yoke assemblies
• 0.094 inch cross hole accepts standard cotter pins or hitch pins for secure retention
• 1.281 inch usable length accommodates typical light-duty linkage tab stacks

Compatibility

Designed as an OEM-style replacement or service fastener for mechanical linkage assemblies requiring a 0.25 inch diameter clevis pin in stainless steel.

Installation Notes

Installation requires no special tools beyond basic hand tools. Power down or de-energize any actuated assembly before removing or replacing a clevis pin. Always use a properly sized cotter pin or hitch pin through the retaining hole to prevent the clevis pin from backing out during operation. Inspect mating clevis brackets for wear or deformation before reinstalling.
