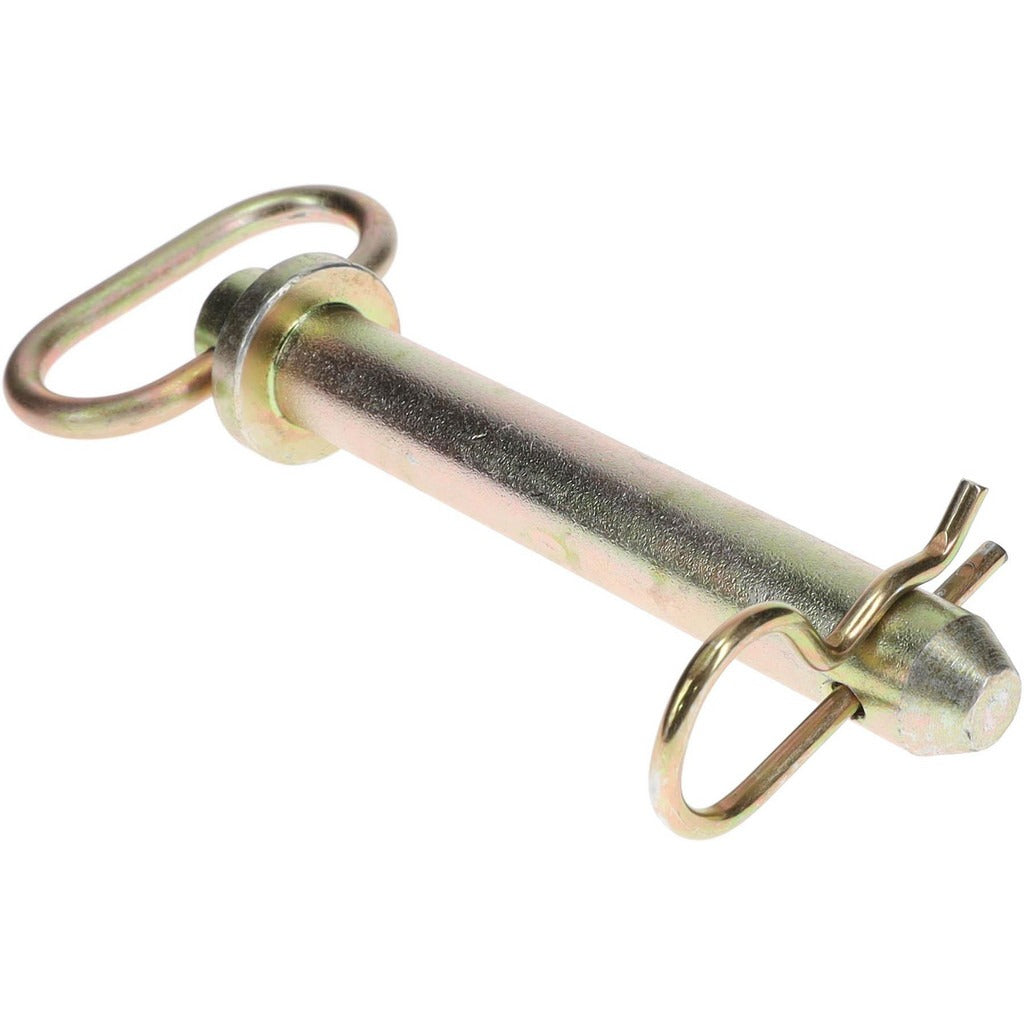

Value Collection P20188 Pull Ring Hitch Pin 3/4 in Zinc Steel

Product Description

The VALUE COLLECTION P20188 is a pull ring hitch pin designed for quick-connect and quick-release fastening applications in industrial, agricultural, and mechanical assemblies. Manufactured from steel with a zinc plated finish, this pin measures 0.75 inches in diameter and 5 inches in overall length, with 4.25 inches of usable length. The pull ring head allows for tool-free insertion and removal, making it practical in field service and equipment maintenance settings where fast changeovers are needed. Hardness is rated at 25-34 HRC, providing solid resistance to shear and wear under load.

This hitch pin is commonly used in trailer hitches, implement attachments, agricultural equipment linkages, and general industrial machinery where a removable pin is required to secure clevis joints, pivot points, or frame connections. It suits both light and moderate-duty applications and is a standard fit for many tractor, utility vehicle, and shop fabrication assemblies. Machinists, agricultural mechanics, and general maintenance technicians working with clevis-style connections will find this pin a reliable off-the-shelf replacement or new-install fastener.

Key Features

• Pull ring head allows tool-free insertion and removal in the field
• 0.75 inch pin diameter suits standard clevis and hitch applications
• 4.25 inches of usable length with 5 inches overall length
• Zinc plated steel finish provides corrosion resistance for outdoor and agricultural use
• Hardness rated 25-34 HRC for reliable shear and wear resistance

Compatibility

Designed as a standard pull ring hitch pin suitable for clevis joints, trailer hitches, and implement linkage points that accept a 0.75 inch diameter pin with approximately 4.25 inches of usable engagement length.

Installation Notes

Installation requires no special tools — insert the pin through aligned holes in the clevis or hitch assembly and secure with the integrated pull ring. Ensure the mating holes are clean and free of burrs before insertion to avoid binding. Always confirm the pin diameter and usable length match the application requirements before installing. Remove any load from the joint before pulling the pin during disassembly.
