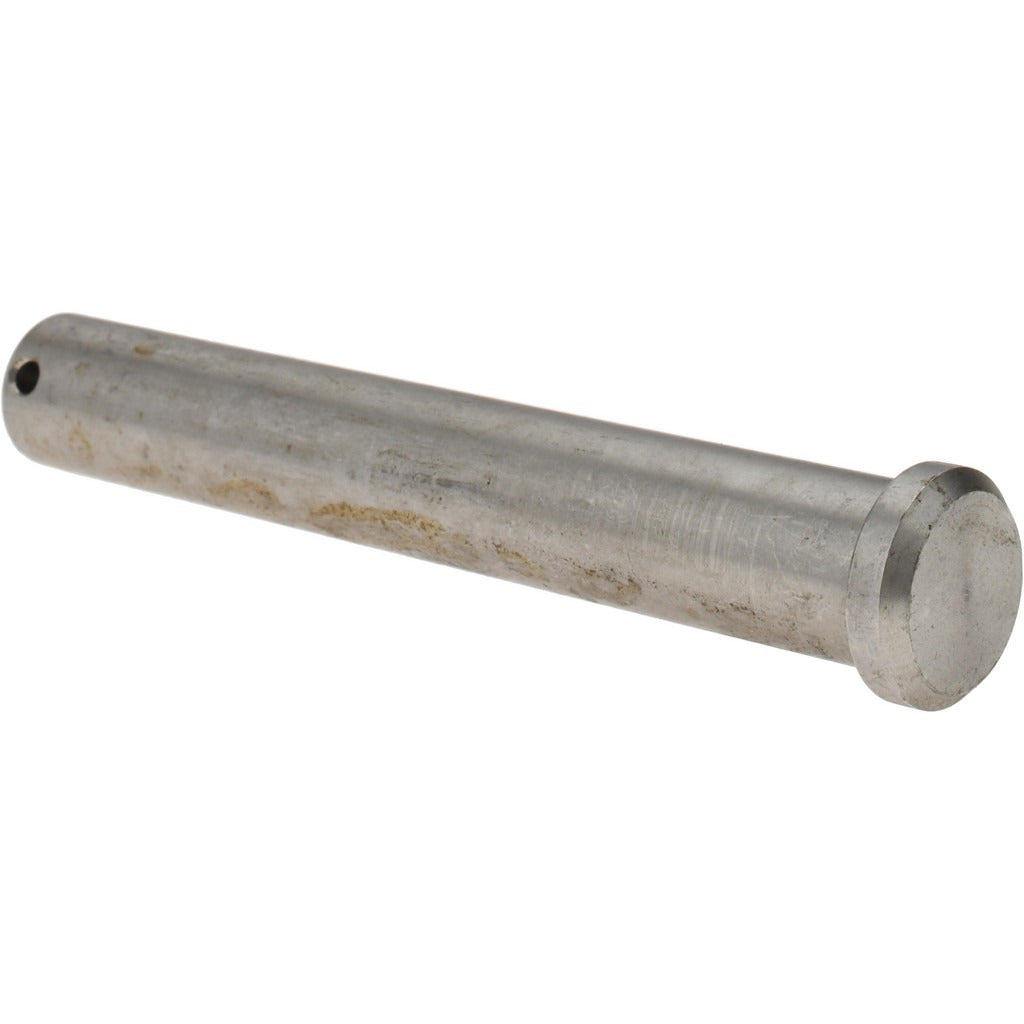

Value Collection P20186 Clevis Pin 3/4 in 5 in Oal Steel

Product Description

The VALUE COLLECTION P20186 is a standard clevis pin designed for use in mechanical linkage assemblies, pivot connections, and load-bearing pin joints. Machined from 18-8 stainless steel and left uncoated, it provides corrosion resistance suitable for both indoor and outdoor applications. The pin measures 0.75 inches in diameter with an overall length of 5 inches and a maximum usable length of 4-27/32 inches. A 5/32-inch cross-hole accommodates a cotter pin or snap ring to secure the pin in place once installed. Machinists, millwrights, maintenance technicians, and general tradespeople install this type of fastener in a wide range of industrial and mechanical assemblies.

This clevis pin is suited for use in clevis-and-yoke linkages, hydraulic cylinder rod ends, agricultural equipment, conveyor systems, and general structural pivot applications. The 18-8 stainless steel construction makes it appropriate for environments with moderate moisture exposure or wash-down conditions where carbon steel fasteners would corrode prematurely. It is sold individually and requires no special tooling beyond standard hand tools for installation.

Key Features

• 0.75-inch pin diameter for heavy-duty clevis and pivot connections
• 5-inch overall length with 4-27/32 inches of usable engagement length
• 5/32-inch cross-hole sized for standard cotter pins or snap rings
• 18-8 stainless steel construction resists corrosion in wet and outdoor environments
• Uncoated finish maintains dimensional accuracy and is compatible with stainless hardware assemblies

Compatibility

Designed as a standard-dimension clevis pin suitable for mechanical linkage assemblies requiring a 0.75-inch diameter pin with a 5-inch overall length and 5/32-inch retaining hole.

Installation Notes

Install and remove clevis pins using standard hand tools. Always de-energize, depressurize, or mechanically lock out any assembly before removing or replacing a load-bearing pin. Secure the pin in position using an appropriately sized cotter pin or snap ring through the cross-hole to prevent axial migration during operation. Inspect mating clevis eyes and yoke bores for wear or damage before installing a replacement pin.
