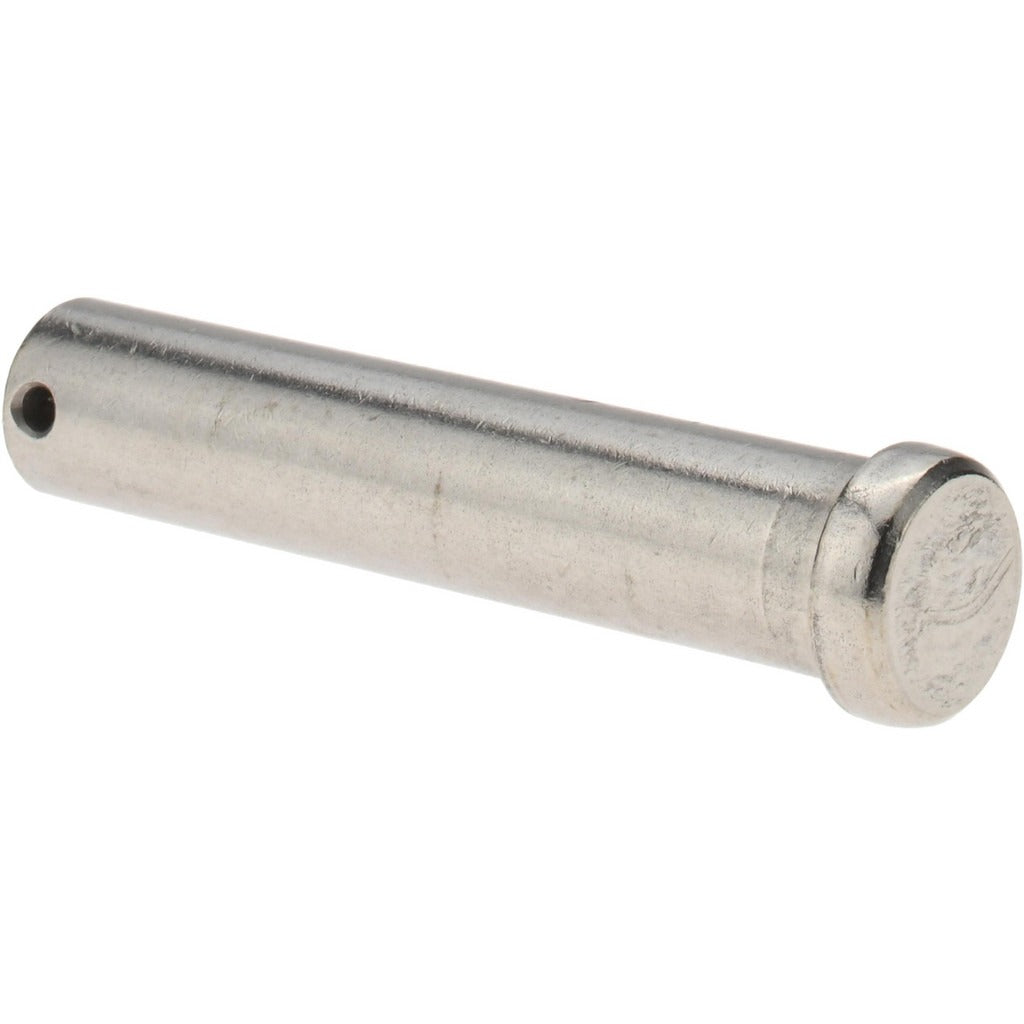

Value Collection P20183 Standard Clevis Pin Stainless Steel

Product Description

The VALUE COLLECTION P20183 is a standard clevis pin machined from 18-8 stainless steel for reliable performance in mechanical linkage, hinge, and fastening applications. The pin measures 0.75 inches in diameter with an overall length of 3.75 inches and a usable length of 3.594 inches. A 0.156-inch cotter pin hole near the retaining end keeps the pin locked in position under load. The uncoated stainless steel finish provides corrosion resistance without additional surface treatment, making it suitable for both indoor and outdoor assemblies. Maintenance technicians, millwrights, and general tradespeople install this type of hardware as part of clevis-and-yoke linkages, gate hardware, and mechanical actuator connections.

This clevis pin is appropriate for use in light-to-medium duty mechanical assemblies where a removable pivot or anchor point is required. Common applications include HVAC damper linkages, actuator rod ends, control arm connections, and general industrial fastening where corrosion resistance is a priority. The 18-8 stainless steel construction handles mildly corrosive environments including outdoor installations and washdown areas. Sold individually, this pin is a direct replacement or spare hardware item for any assembly calling for a 0.75-inch diameter clevis pin of this length class.

Key Features

• 0.75-inch pin diameter fits standard 0.75-inch bore clevis and yoke fittings
• 3.594-inch usable length accommodates typical clevis jaw widths in this size class
• 0.156-inch cotter pin hole provides a secure retaining point to prevent pin walk-out
• 18-8 stainless steel construction resists corrosion in wet and mildly chemical environments
• Uncoated finish eliminates coating thickness variation for consistent dimensional fit
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as a standard-dimension clevis pin for mechanical linkage assemblies requiring a 0.75-inch diameter pin with a 3.75-inch overall length. Verify bore diameter, usable length, and hole position against the existing assembly before installation.

Installation Notes

Installation is performed by maintenance technicians or millwrights as part of mechanical linkage assembly or repair. De-energize and lock out any actuator, valve, or mechanical drive connected to the linkage before removing or installing the pin. Insert the pin through aligned clevis bores and secure with an appropriately sized cotter pin or snap ring through the retaining hole. Do not substitute the cotter pin with wire or improvised retainers, as uncontrolled pin ejection under load is a safety hazard.
