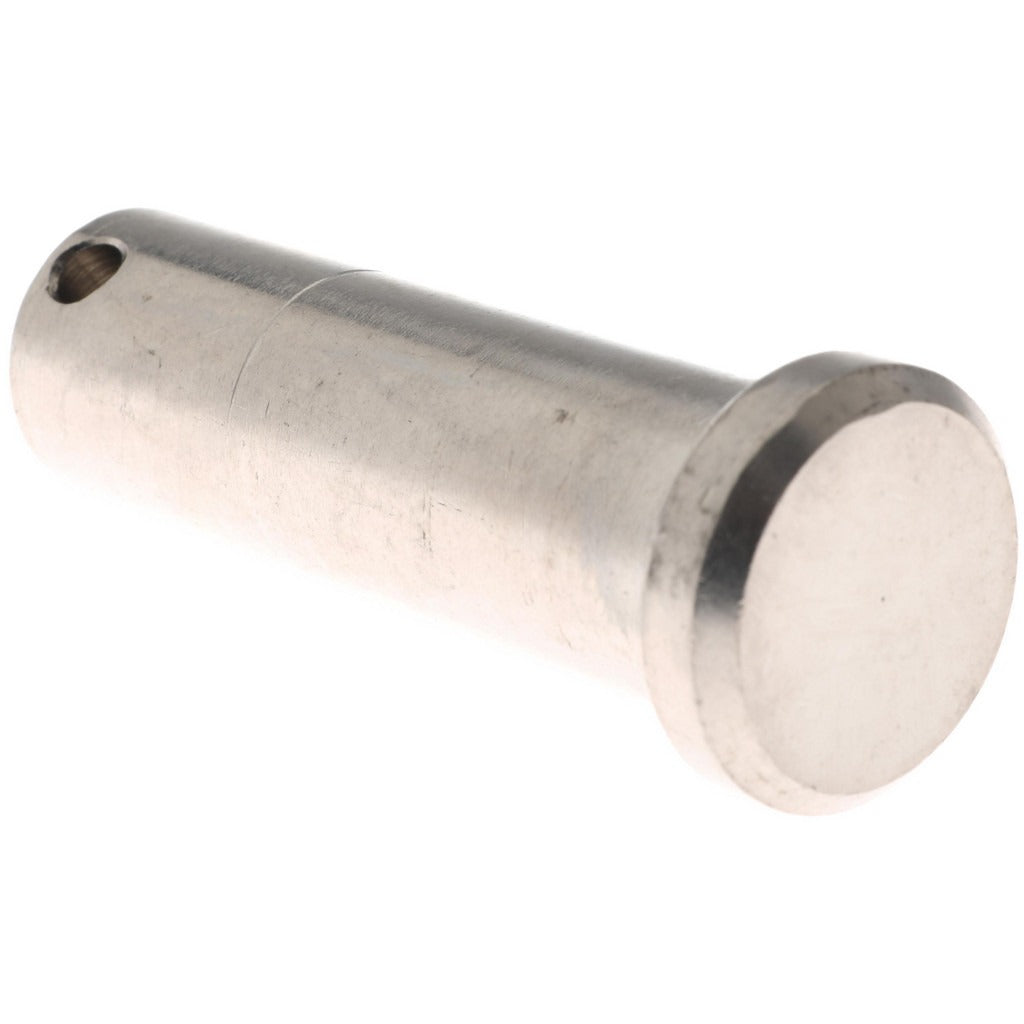

Value Collection P20173 Standard Clevis Pin 5/8 in

Product Description

The VALUE COLLECTION P20173 is a standard clevis pin designed for use in clevis-and-pin assemblies found in linkage systems, agricultural equipment, industrial machinery, and general mechanical applications. The pin measures 5/8 inch in diameter with an overall length (OAL) of 2 inches and a usable length of 1-27/32 inches. A 5/32 inch cotter pin hole is positioned near the retaining end to accept a cotter pin or snap ring for positive retention. Constructed from 18-8 stainless steel with no coating applied, this pin offers corrosion resistance suitable for both indoor and outdoor service environments. Machinists, millwrights, and maintenance technicians typically install this hardware during equipment assembly or repair.

This clevis pin is appropriate for use in light-duty to medium-duty mechanical linkage connections where a precise pin diameter of 5/8 inch is required. Common applications include pivot points, yoke connections, rod ends, and clevis brackets in general industrial, agricultural, and structural assembly contexts. The uncoated stainless steel construction makes it a practical choice in environments exposed to moisture or mild corrosive conditions where carbon steel fasteners would be less suitable.

Key Features

• 5/8 inch pin diameter for precise clevis fitting
• 2 inch overall length with 1-27/32 inch usable length
• 5/32 inch cotter pin hole for positive retention with cotter pin or snap ring
• 18-8 stainless steel construction provides corrosion resistance
• Uncoated finish suitable for direct installation without prep

Compatibility

Designed as a standard clevis pin replacement or new installation fastener for mechanical linkage assemblies requiring a 5/8 inch pin diameter and 2 inch overall length.

Installation Notes

Installation is typically performed by machinists, maintenance technicians, or mechanical assemblers using standard hand tools. Always ensure the receiving clevis bore diameter matches the 5/8 inch pin diameter before installation. Insert the pin fully through the clevis and rod end, then secure with an appropriate cotter pin through the 5/32 inch hole or fit a snap ring in the retaining groove if applicable. Depressurize or de-energize the connected assembly before servicing any linkage hardware.
