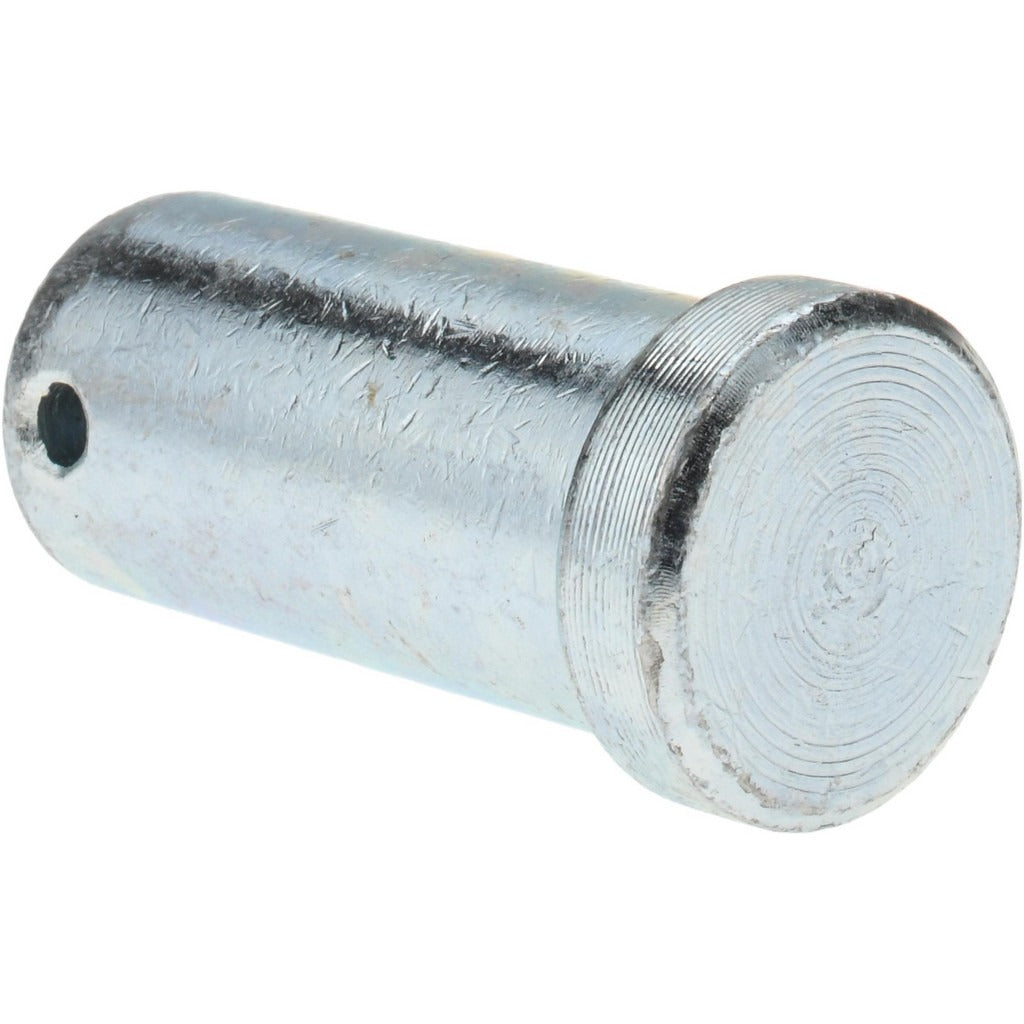

Value Collection P20168 Clevis Pin 1 in Dia 2 in Oal

Product Description

The VALUE COLLECTION P20168 is a standard clevis pin designed for use in mechanical linkage, actuator, and fastening applications where a removable, load-bearing connector is required. Machined from 1010/1018 grade steel with a zinc-plated finish for corrosion resistance, this pin measures 1 inch in diameter and 2 inches in overall length, with a maximum usable length of 1-51/64 inches. The cotter pin hole is sized at 13/64 inches. Machinists, maintenance technicians, and fabricators install clevis pins in rod-end linkages, couplings, and pivot joints across industrial and commercial equipment.

This clevis pin is suited for general mechanical assembly and maintenance work in light-to-medium industrial environments. It functions as a pivot or connecting pin in clevis-and-yoke linkages, hydraulic rod ends, control linkages, and similar mechanical assemblies. The zinc plating makes it appropriate for indoor and moderately protected outdoor applications where mild corrosion resistance is needed.

Key Features

• 1 inch pin diameter for use in standard 1-inch clevis and yoke fittings
• 2 inch overall length with 1-51/64 inches of maximum usable length
• 13/64 inch cotter pin hole for secure retention
• 1010/1018 steel construction for reliable shear and tensile strength
• Zinc-plated finish provides corrosion resistance for general-duty use

Compatibility

Designed as a standard replacement or new-installation clevis pin for mechanical linkage assemblies requiring a 1-inch diameter pin with a 2-inch overall length.

Installation Notes

Clevis pins are typically installed by maintenance technicians, millwrights, or fabricators using basic hand tools. Always relieve load and de-energize any actuator or linkage assembly before removing or installing a clevis pin. Secure the pin with an appropriately sized cotter pin through the 13/64-inch retention hole after installation. Inspect the pin and mating clevis bore for wear or deformation before reuse.
