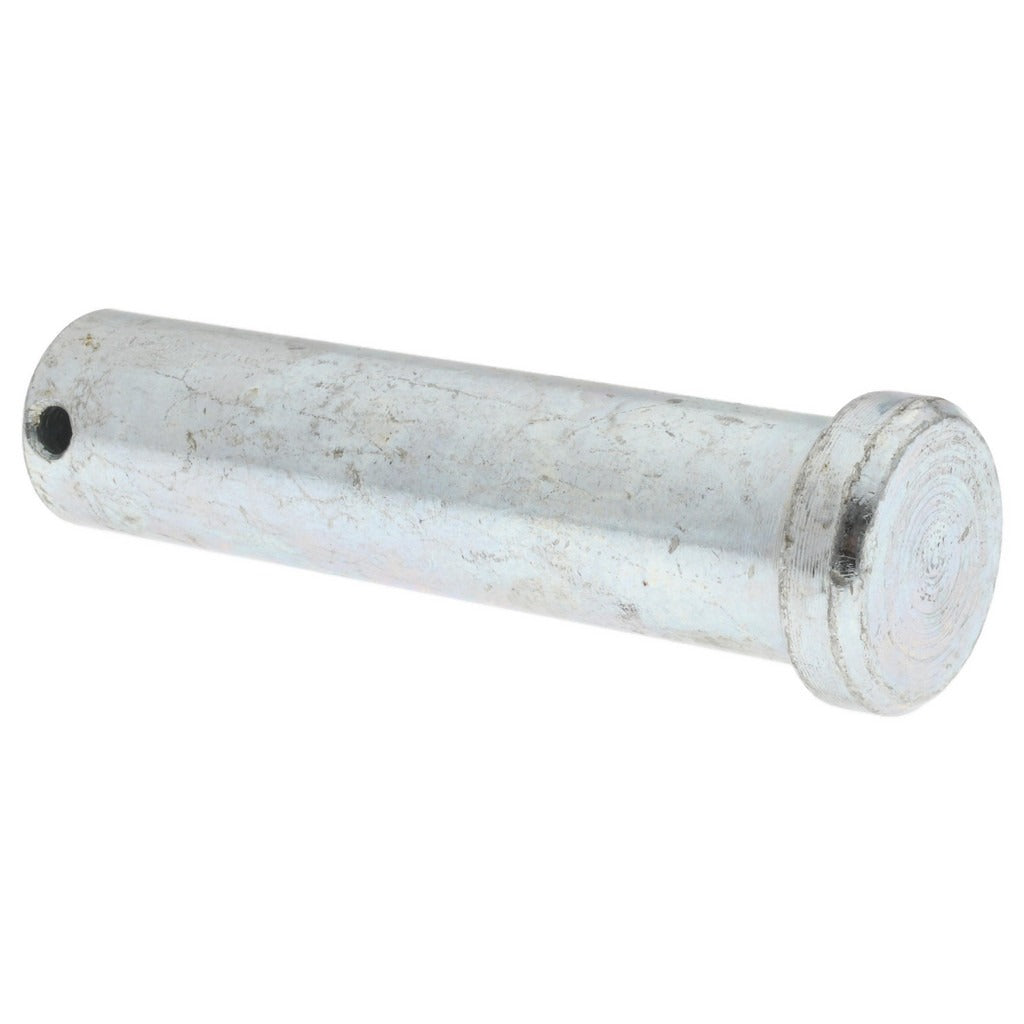

Value Collection P20162 Standard Clevis Pin 3/4 in Dia

Product Description

The VALUE COLLECTION P20162 is a standard clevis pin used to create secure pivot connections in mechanical assemblies, linkages, and fastening applications. Manufactured from 1010/1018 steel with a zinc-plated finish, this pin measures 0.75 inches in diameter and 3 inches in overall length, with a usable length of 2-27/32 inches. A 5/32-inch cotter pin hole is pre-drilled for use with a standard cotter pin or hitch pin clip to retain the pin in service. Machinists, maintenance technicians, and general contractors rely on this type of hardware for clevis-to-rod, yoke, and bracket connections across a wide range of equipment and structural applications.

This clevis pin is suited for general industrial, agricultural, and mechanical maintenance applications where a reliable pivot or hinge point is needed. Typical installations include control linkages, hydraulic cylinder mounts, turnbuckle assemblies, and suspension pivot points. The zinc plating provides basic corrosion resistance suitable for indoor and light outdoor use. This pin is sold individually but has a minimum order quantity of 5 units, making it practical for both single repairs and small-batch replacement stock.

Key Features

• 0.75-inch pin diameter for standard clevis and yoke fitment
• 3-inch overall length with 2-27/32 inches of usable length
• 5/32-inch cotter pin hole pre-drilled for positive retention
• 1010/1018 steel construction for reliable shear and tensile strength
• Zinc-plated finish for basic corrosion resistance in light-duty environments

Compatibility

Designed as a standard 3/4-inch diameter clevis pin suitable for general mechanical and industrial pivot applications requiring this pin diameter and overall length.

Installation Notes

Installation of clevis pins is typically performed by maintenance mechanics or millwrights using basic hand tools. Always de-energize and lock out any machinery before removing or inserting clevis pins in a live assembly. After seating the pin fully through the clevis bore, secure it with an appropriate cotter pin or hitch pin clip through the retention hole to prevent backing out during operation. Verify that the pin diameter and usable length match the clevis bore and grip length of the application before installation.
