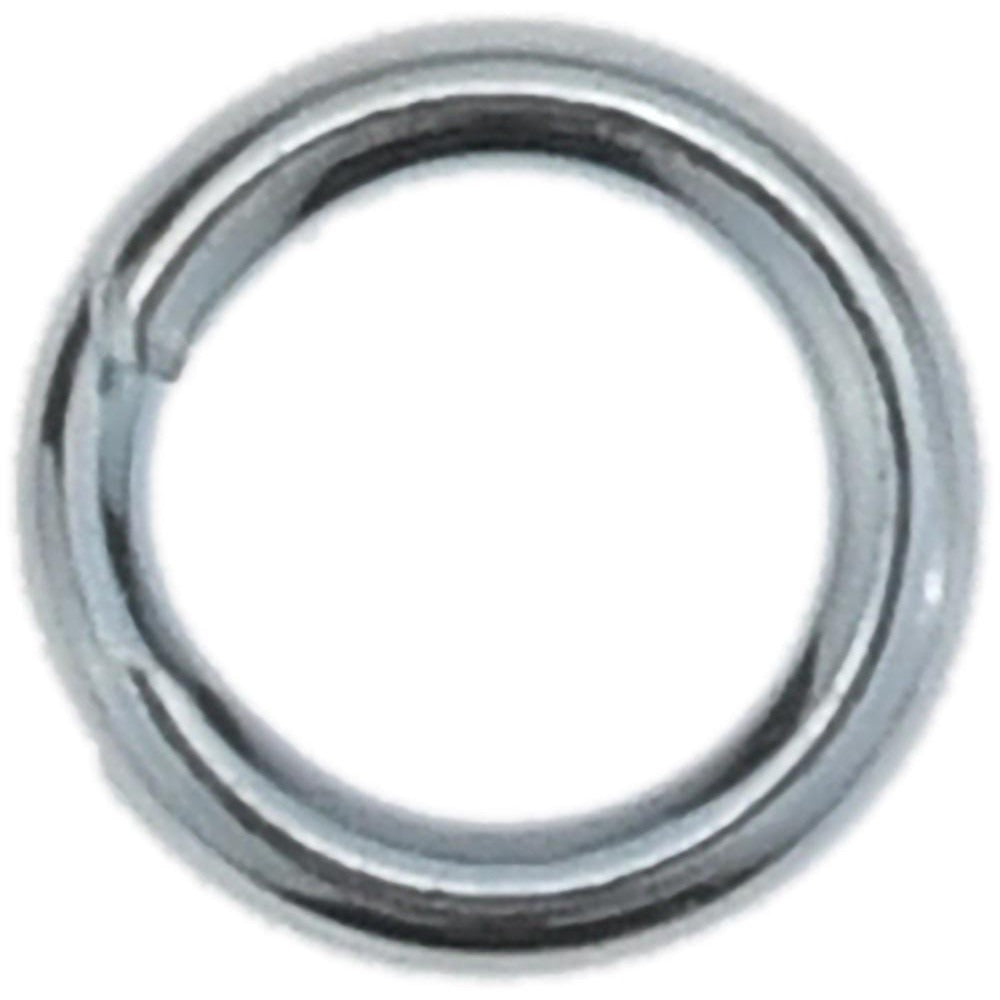

Value Collection P20070 Split Ring Zinc-plated Spring Steel

Product Description

The VALUE COLLECTION P20070 is a split ring fastener manufactured from Grade 2 spring steel with a zinc-plated finish. It features an inside diameter of 0.174 inches, an outside diameter of 0.254 inches, and a thickness of 0.062 inches. Split rings in this size class are used to retain shafts, pins, and small components in place within assemblies, preventing axial movement without the need for threading or welding. The zinc plating provides a base level of corrosion resistance for general indoor and light-duty applications. This part is installed by millwrights, machine technicians, HVAC service technicians, and general maintenance professionals working on small-component assemblies.

This split ring is suited for light mechanical assemblies where a compact, low-profile retaining solution is required. Typical applications include small motor shaft retention, linkage pin retention, and component positioning in HVAC equipment, plumbing fixtures, and general industrial machinery. The small OD of 0.254 inches makes this ring appropriate for tight-clearance assemblies where space is limited. This SKU is sold individually but carries a minimum order quantity of 100 units, making it appropriate for shop stock, maintenance kits, or production assembly use.

Key Features

• Inside diameter of 0.174 inches for precise shaft or pin fitment
• Outside diameter of 0.254 inches for tight-clearance assemblies
• Thickness of 0.062 inches for low-profile retention
• Grade 2 spring steel construction for reliable retaining force
• Zinc-plated finish for basic corrosion resistance in general-duty environments

Compatibility

Designed as an OEM-style replacement or general-stock split ring for small mechanical assemblies requiring a 0.174-inch inside diameter retaining ring.

Installation Notes

Split rings of this size are typically installed and removed using needle-nose pliers or dedicated snap ring pliers appropriate for the ring diameter. Always de-energize or lock out equipment before servicing any assembly containing retaining rings. Inspect the ring groove for burrs or wear before installation to ensure proper seating. Do not over-stress or over-expand the ring during installation, as spring steel rings can fracture if deformed beyond their elastic limit.
