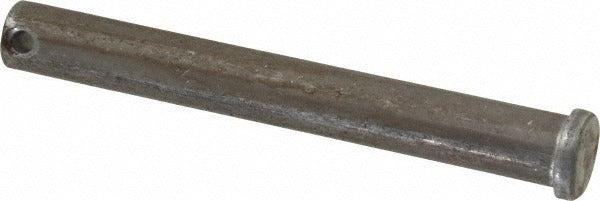

Value Collection P20054 Clevis Pin 0.5 in Diameter Uncoated Steel

Product Description

The VALUE COLLECTION P20054 is a standard clevis pin machined from 1010-1018 grade uncoated steel. It measures 0.5 inches in pin diameter with an overall length of 4 inches and a usable length of 3.844 inches (3-27/32 inches). A 5/32-inch cotter pin hole is drilled through the shank to accept a retaining pin or cotter pin, securing the assembly under load. This type of clevis pin is a fundamental fastening component used to create pivoting or articulating connections in mechanical linkages, brackets, and actuator assemblies. Installers and maintenance technicians working on HVAC damper linkages, actuator arms, or general mechanical assemblies will recognize this as a standard off-the-shelf fastener.

The P20054 clevis pin is suited for use in light to moderate duty mechanical connections where a removable pivot fastener is required. Common applications include HVAC control linkages, damper actuator connections, and general industrial or equipment maintenance scenarios. The uncoated steel finish is appropriate for dry or protected indoor environments. This pin ships individually but must be ordered in multiples of 5 to meet minimum order requirements.

Key Features

• 0.5-inch pin diameter for a secure fit in standard clevis and yoke assemblies
• 4-inch overall length with 3-27/32 inches of usable engagement length
• 5/32-inch cotter pin hole for positive retention with a standard cotter pin or hitch pin clip
• Machined from 1010-1018 grade steel for consistent dimensional accuracy
• Uncoated finish suitable for protected indoor mechanical applications

Compatibility

Designed as a standard replacement or stock clevis pin for mechanical linkage assemblies requiring a 0.5-inch diameter pin with a 4-inch overall length and a 5/32-inch cotter hole.

Installation Notes

Clevis pins are installed and removed by hand or with light tooling and do not require power equipment. Always de-energize and de-pressurize any actuator, linkage, or mechanical assembly before removing or inserting a clevis pin. Secure the pin after installation with an appropriately sized cotter pin or hitch pin clip through the 5/32-inch hole to prevent backing out under vibration or load. Inspect the mating clevis or yoke bore for wear or damage before installing a replacement pin.
