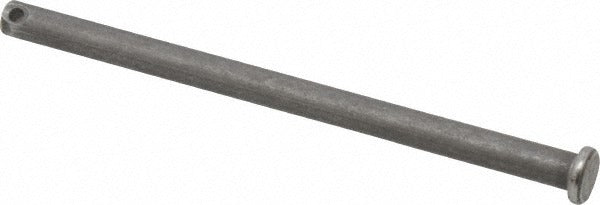

Value Collection P20047 Clevis Pin 1/4 in Steel

Product Description

The VALUE COLLECTION P20047 is a standard clevis pin used to create removable pivot connections in mechanical linkages, clevis brackets, and rod-end assemblies. Machined from 1010-1018 grade steel with an uncoated finish, this pin measures 0.25 inches in diameter with a 4-inch overall length and a maximum usable length of 3-29/32 inches. A 3/32-inch cross-hole at the working end accepts a cotter pin or hitch pin clip to retain the assembly. This type of fastener is commonly installed by HVAC technicians, millwrights, plumbers, and general mechanical tradespeople wherever a quick-disconnect pivot point is required in a control linkage or actuator assembly.

Standard clevis pins like the P20047 are used in damper linkages, valve actuator assemblies, pump mounting brackets, and similar mechanical control applications. The uncoated steel construction suits indoor and protected environments. The 3/32-inch retaining hole allows the use of standard cotter pins or hitch pin clips to secure the pin against axial movement during operation.

Key Features

• 0.25-inch pin diameter for compatibility with standard 1/4-inch clevis fittings and rod ends
• 4-inch overall length with 3-29/32 inches of usable length
• 3/32-inch cross-hole for cotter pin or hitch pin clip retention
• 1010-1018 steel construction provides reliable strength for light-to-medium duty linkage applications
• Uncoated finish suited for dry, protected indoor mechanical assemblies

Compatibility

Designed as a standard replacement or new-installation clevis pin for mechanical linkage assemblies requiring a 0.25-inch diameter pin with a 4-inch overall length.

Installation Notes

Installation does not require energized systems, but always de-energize and lock out any actuator or control linkage before servicing connected components. Insert the pin through aligned clevis and rod-end bores, then secure with a cotter pin or hitch pin clip through the 3/32-inch retaining hole. Inspect bore alignment before driving the pin to avoid damaging the cross-hole. Refer to the equipment manufacturer's documentation for load ratings and replacement intervals.
