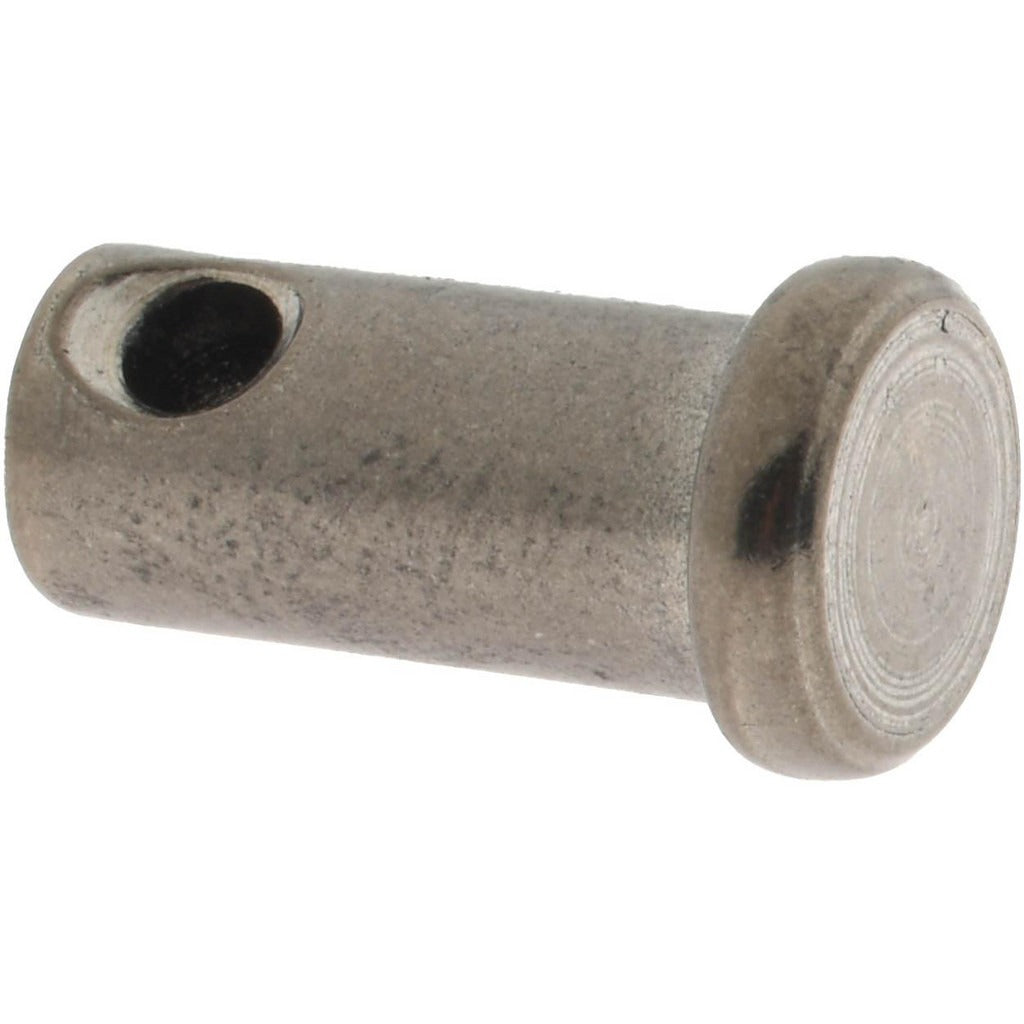

Value Collection P20042 Clevis Pin 3/8 in 3/4 in Oal Stainless

Product Description

The VALUE COLLECTION P20042 is a standard clevis pin used to create removable pivot connections in mechanical linkages, rod ends, and actuator assemblies. Machined from 18-8 stainless steel with an uncoated finish, this pin offers solid corrosion resistance in wet, outdoor, and light chemical environments. The pin measures 3/8 inches in diameter with an overall length of 3/4 inches, a usable length of 19/32 inches, and a cotter pin or clip hole diameter of 5/32 inches. Plumbers, HVAC technicians, and general trade mechanics use clevis pins to secure linkages on damper actuators, valve stems, and mechanical controls where a pinned connection is required.

This clevis pin is suited for both residential and light commercial mechanical applications. Typical installations include HVAC damper linkages, zone control actuators, and plumbing valve rod-end connections where a secure, removable pivot point is needed. The 18-8 stainless steel construction makes it appropriate for applications with exposure to moisture or mild corrosives. Individual pin quantity is one piece per package.

Key Features

• 3/8 inch pin diameter with 19/32 inch usable length for secure linkage engagement
• 3/4 inch overall length for compact mechanical assemblies
• 5/32 inch cotter pin or clip hole for positive retention
• 18-8 stainless steel construction provides corrosion resistance
• Uncoated finish — no coating to crack, peel, or interfere with fitment

Compatibility

Designed as a standard-dimension clevis pin for mechanical linkage, actuator, and rod-end applications requiring a 3/8 inch pin diameter and 3/4 inch overall length.

Installation Notes

Clevis pins are installed by trade mechanics, HVAC technicians, and plumbers working on mechanical linkage systems. Before servicing any connected actuator or valve, de-energize the system and relieve any mechanical tension on the linkage. Secure the pin with an appropriately sized cotter pin or retaining clip through the 5/32 inch hole to prevent backing out during operation. Follow equipment manufacturer torque and retention guidelines for the connected assembly.
