Value Collection P20035 Clevis Pin Stainless Steel

Product Description

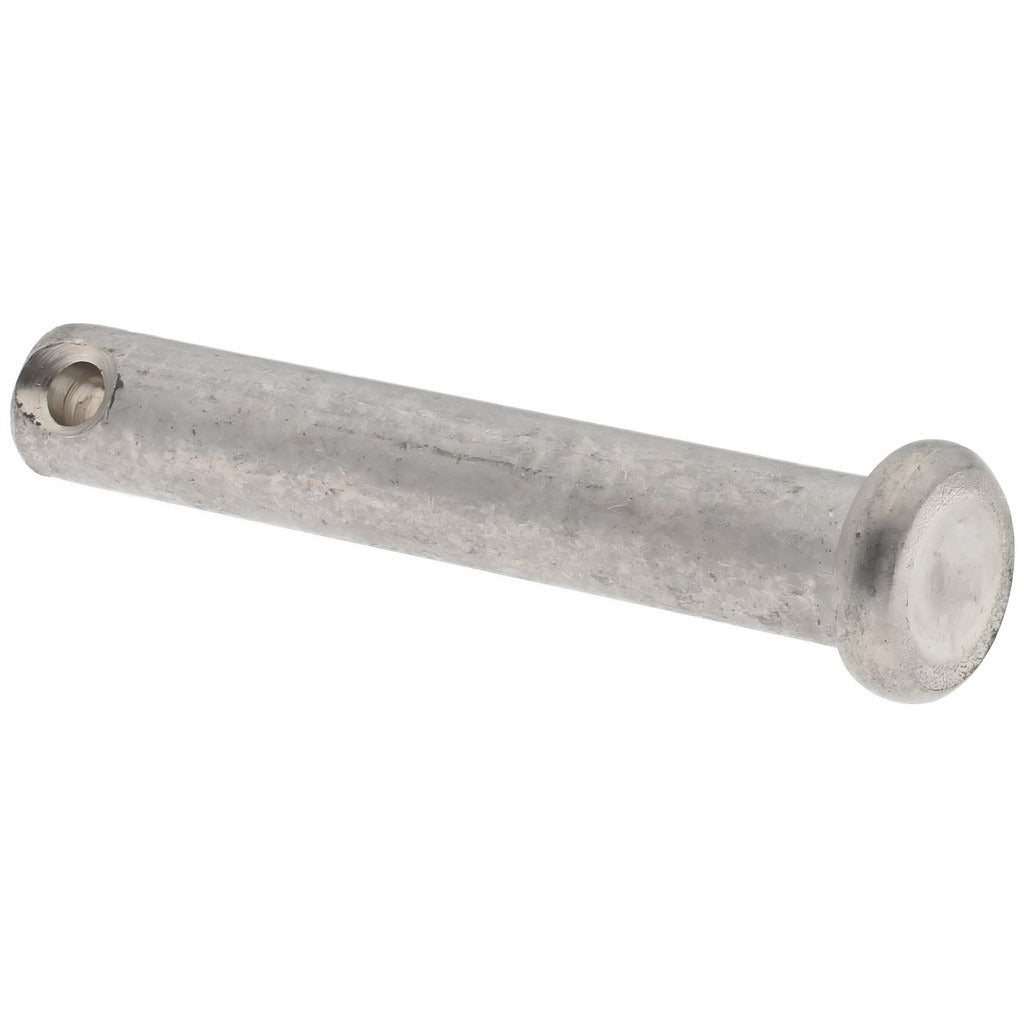

The VALUE COLLECTION P20035 is a standard clevis pin designed for use in mechanical linkages, couplings, and fastening assemblies where a removable pivot or hinge point is required. This pin measures 0.25 inches in pin diameter and 1.5 inches in overall length, with a usable length of 1-13/32 inches and a 3/32-inch cotter hole near the retaining end. Constructed from 18-8 stainless steel with an uncoated finish, it offers good corrosion resistance and strength for both indoor and outdoor service environments. Machinists, millwrights, maintenance technicians, and general trade professionals install this type of hardware in a wide range of light-duty to moderate-duty applications.

This clevis pin is suited for use in mechanical linkage assemblies, control rod connections, rod-end and clevis bracket pairings, and general pivot-point fastening across HVAC equipment, fluid system components, and industrial machinery. The 3/32-inch cotter hole accepts a standard cotter pin or hitch pin clip for positive retention in dynamic or vibrating assemblies. It is appropriate for both new installations and replacement service work wherever a 0.25-inch diameter clevis pin with 1.5-inch overall length is specified.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in wet or outdoor service conditions
• 0.25-inch pin diameter fits standard 0.25-inch clevis and rod-end bores
• 1.5-inch overall length with 1-13/32-inch usable length for precise fit in clevis assemblies
• 3/32-inch cotter hole near retaining end for use with standard cotter pins or hitch pin clips
• Uncoated finish maintains dimensional accuracy without added plating thickness

Compatibility

Designed as a standard clevis pin for use in mechanical linkage, pivot, and coupling assemblies requiring a 0.25-inch diameter pin with 1.5-inch overall length and a 3/32-inch cotter hole.

Installation Notes

Installation is performed by maintenance technicians, millwrights, or qualified trade professionals. Before servicing any mechanical linkage, de-energize connected equipment and release any stored mechanical or hydraulic pressure per applicable safety procedures. Insert the pin through aligned clevis and mating bores, then secure with a cotter pin or hitch pin clip through the 3/32-inch hole to prevent backing out during operation. Inspect the mating bore diameter before installation to confirm proper clearance fit.
