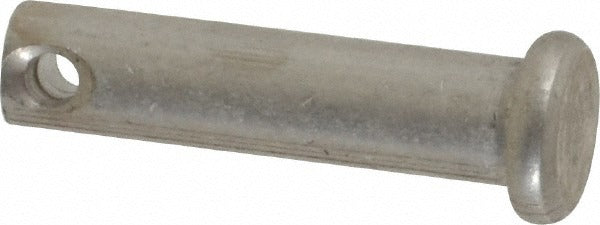

Value Collection P20033 Clevis Pin 1/4 in Stainless

Product Description

The VALUE COLLECTION P20033 is a standard clevis pin designed for mechanical linkage and fastening applications across industrial, HVAC, and general trade use. Machined from 18-8 stainless steel with an uncoated finish, this pin measures 1/4 inch in diameter and 1 inch in overall length (OAL), with a usable length of 29/32 inch. The cotter pin hole is sized at 3/32 inch, allowing for secure retention with a standard cotter pin or snap ring. Installers and maintenance technicians reach for this pin when connecting clevis brackets, linkage rods, or pivot assemblies in mechanical systems requiring corrosion-resistant hardware.

This clevis pin suits light-duty to medium-duty mechanical connections in residential and commercial settings. Typical applications include HVAC damper linkages, actuator mounts, control arm connections, and general machinery pivot points where stainless steel is preferred for moisture resistance. The 18-8 stainless steel construction makes it appropriate for environments exposed to humidity, mild chemicals, or outdoor conditions. It is sold individually but must be ordered in multiples of 5 per the minimum order quantity requirement.

Key Features

• 18-8 stainless steel construction resists corrosion in humid or wet environments
• 1/4 inch pin diameter with 1 inch overall length for compact linkage applications
• 29/32 inch usable length accommodates standard clevis bracket widths
• 3/32 inch cotter pin hole accepts standard retention hardware
• Uncoated finish maintains dimensional accuracy without plating buildup

Compatibility

Designed as an OEM-style replacement or serviceable component for mechanical linkage assemblies requiring a 1/4 inch diameter clevis pin with a 3/32 inch cotter hole and 29/32 inch usable length.

Installation Notes

Installation is typically performed by HVAC technicians, millwrights, or maintenance mechanics working on linkage and pivot assemblies. Always de-energize or shut down the associated mechanical or HVAC system before removing or installing clevis pins. Secure the pin using an appropriately sized cotter pin or retaining clip through the 3/32 inch hole to prevent backing out during operation. Do not force the pin into an undersized bore, as this may deform the hole or compromise the joint.
