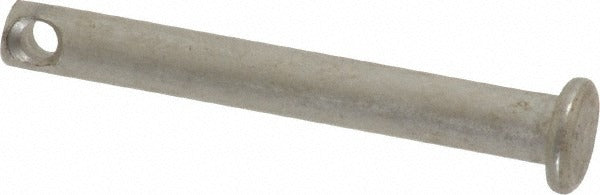

Value Collection P20031 Clevis Pin 3/16 in Stainless

Product Description

The VALUE COLLECTION P20031 is a standard clevis pin machined from 18-8 stainless steel with an uncoated finish. It features a 3/16 inch pin diameter and an overall length of 1.5 inches, with a usable length of 1-13/32 inches. The cotter pin hole is sized at 3/32 inches. This pin is used to create pivot connections in mechanical linkages, rod ends, and clevis assemblies. It is installed by maintenance technicians, millwrights, and field service professionals working on light mechanical hardware, actuator linkages, and similar fastening applications.

This clevis pin is suited for residential and light commercial mechanical assemblies where a secure, removable pivot connection is needed. Common install scenarios include control linkages, rod-end connections, and bracket pivot joints. The 18-8 stainless steel construction makes it appropriate for environments with moderate corrosion exposure. Minimum order quantity is 5 pins; each package contains 1 pin.

Key Features

• 3/16 inch pin diameter for standard clevis and rod-end fitment
• 1.5 inch overall length with 1-13/32 inches of usable length
• 3/32 inch cotter pin hole for positive retention
• 18-8 stainless steel construction for corrosion resistance
• Uncoated finish — no plating to flake or interfere with close-tolerance fits

Compatibility

Designed as a standard replacement clevis pin for mechanical linkage assemblies requiring a 3/16 inch pin diameter and 1.5 inch overall length.

Installation Notes

Clevis pins are installed by maintenance technicians and mechanical service professionals. Relieve all load and de-energize any actuator or mechanism before removing or inserting the pin. Secure the pin with an appropriately sized cotter pin or hairpin clip through the 3/32 inch hole once positioned. Do not drive the pin with excessive force; if resistance is felt, verify bore alignment before proceeding.
