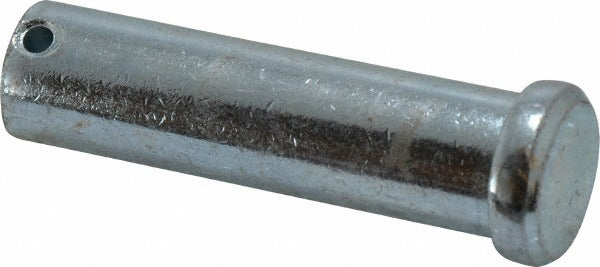

Value Collection P20011 Standard Clevis Pin 0.75in Zinc Steel

Product Description

The VALUE COLLECTION P20011 is a standard clevis pin designed for use in mechanical linkage assemblies, clevis brackets, and pivot connections across a wide range of industrial and trade applications. Machined from 1010-1018 grade steel with a zinc-plated finish for corrosion resistance, this pin measures 0.75 inches in diameter and 2.75 inches in overall length, with a usable length of 2.594 inches. The cotter pin hole measures 0.156 inches in diameter. Maintenance technicians, millwrights, and general tradespeople install this type of pin in actuator linkages, HVAC damper assemblies, and mechanical control systems where a reliable, removable pivot fastener is required.

This clevis pin is suited for residential and light commercial mechanical assemblies that use standard clevis-style connections. Common applications include damper actuator arms, valve linkages, control rod assemblies, and pivot brackets where a retained pin fastener is needed. The zinc plating provides basic protection against moisture and mild corrosion in service environments typical of mechanical rooms and equipment closets.

Key Features

• 0.75 inch pin diameter for standard clevis bracket fitment
• 2.594 inch usable length accommodates typical clevis and fork assemblies
• 0.156 inch cotter pin hole for positive retention with a standard cotter or snap ring
• 1010-1018 steel construction provides reliable shear strength in pivot applications
• Zinc-plated finish resists light corrosion in indoor mechanical environments
• Weighs 0.38 pounds per unit — lightweight and easy to handle during install

Compatibility

Designed as a standard-dimension clevis pin for use in mechanical linkage assemblies requiring a 0.75 inch pin diameter and 2.75 inch overall length with a 0.156 inch cotter hole.

Installation Notes

Installation is performed by maintenance technicians or millwrights working on mechanical linkage systems. Always de-energize and lock out any actuator or motor driving the linked assembly before removing or installing the pin. Secure the pin after installation with an appropriate cotter pin or snap ring through the retention hole — never leave the hole unsecured in a dynamic application. Inspect the clevis bracket bore and mating hardware for wear before fitting the replacement pin.
