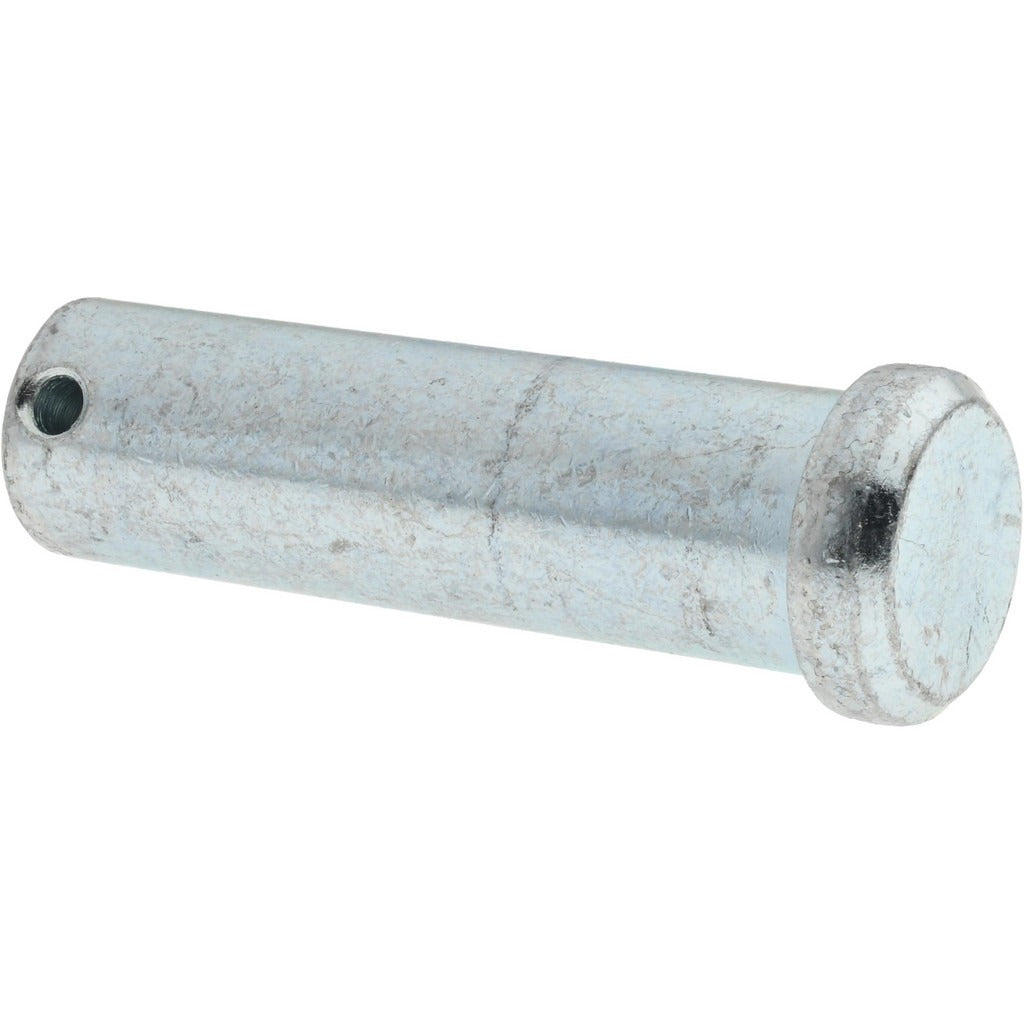

Value Collection P20001 Clevis Pin 3/4 in Zinc Steel

Product Description

The VALUE COLLECTION P20001 is a standard clevis pin used to create removable pivot connections in mechanical linkages, clevis assemblies, and general fastening applications. Machined from 1010/1018 steel with a zinc-plated finish for corrosion resistance, this pin measures 0.75 inches in diameter and 2.5 inches in overall length, with a usable length of 2-11/32 inches. A 5/32-inch cotter pin hole is located near the retaining end to accept a cotter pin or hairpin clip, keeping the pin secured in service. Machinists, millwrights, maintenance technicians, and general trade mechanics install this type of hardware across a wide range of light to medium-duty industrial and mechanical applications.

This clevis pin is suited for use in mechanical linkage systems, control rod assemblies, hydraulic cylinder end connections, and general pivot-point applications across industrial, agricultural, and commercial maintenance environments. The zinc plating provides a baseline level of corrosion protection adequate for indoor and sheltered outdoor use. The 1010/1018 carbon steel base material offers reliable shear strength for standard-duty clevis fastening tasks. This pin ships individually and is sold with a minimum order quantity of 2 units per order.

Key Features

• 0.75-inch pin diameter fits standard 3/4-inch clevis and yoke bores
• 2.5-inch overall length with 2-11/32 inches of usable length for positive engagement
• 5/32-inch cotter pin hole for secure retention with a cotter pin or hairpin clip
• 1010/1018 carbon steel construction for consistent shear strength in standard-duty applications
• Zinc-plated finish provides corrosion resistance in sheltered environments
• Lightweight at 0.35 pounds, suitable for high-cycle and weight-sensitive assemblies

Compatibility

Designed as a standard-duty clevis pin for use in any mechanical assembly requiring a 3/4-inch diameter removable pivot pin with a 5/32-inch cotter pin retention hole.

Installation Notes

Installation is typically performed by a mechanic or maintenance technician using standard hand tools. Before installing, relieve all load and tension from the clevis assembly to prevent sudden movement. Insert the pin through aligned clevis and rod-end bores, then secure with an appropriately sized cotter pin or hairpin clip through the 5/32-inch retention hole. Always confirm the pin is fully seated and the retaining clip is properly spread or locked before returning the assembly to service.
