Value Collection OD/10 Outside Caliper 10 Inch Spring Joint

Product Description

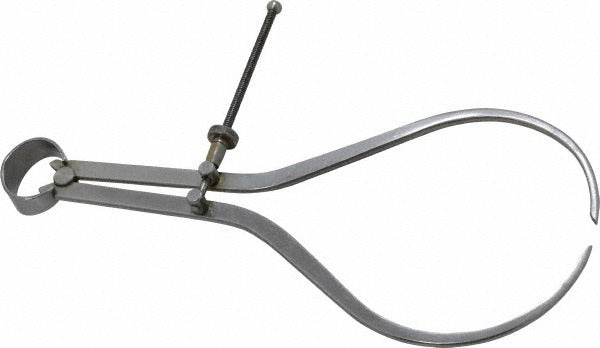

The VALUE COLLECTION OD/10 is a spring-joint outside caliper designed for direct measurement of external dimensions on workpieces. The flat leg profile and quick-nut adjustment allow technicians and machinists to lock a measurement quickly and transfer it to a rule or reference standard. Constructed from polished steel, this caliper handles the daily wear of shop and field use. The 10-inch leg length supports a maximum measurement capacity of 10 inches (250 mm), making it well-suited for medium to large outside-diameter work. At 0.44 pounds, it is light enough for one-handed use during layout and inspection tasks.

This outside caliper is used in metalworking, pipefitting, plumbing rough-in, and general mechanical trades wherever an outside diameter or width must be measured and transferred. The spring-joint design keeps constant tension on the legs so the set position holds reliably between the workpiece and the reference scale. The quick-nut adjustment adds fine control without requiring the technician to re-spread the legs from scratch on close measurements. It is a standard layout and inspection tool found in machine shops, fabrication floors, and maintenance toolboxes.

Key Features

• Spring joint maintains consistent leg tension for stable, repeatable measurements
• Quick-nut adjustment allows fine-tuning of leg spread without resetting from open position
• Flat leg profile suits outside-diameter and external-width measurement tasks
• Polished steel construction resists corrosion and withstands shop-environment handling
• 10-inch maximum measurement capacity with 250 mm equivalent range

Compatibility

Designed as a general-purpose outside caliper for use in metalworking, pipefitting, and mechanical trade applications requiring external dimension transfer up to 10 inches.

Installation Notes

No power source or mounting is required for this hand tool. Before use, inspect the spring joint and quick-nut mechanism for smooth operation and verify legs close fully without binding. Handle polished steel surfaces with care to avoid burrs or nicks that can affect measurement accuracy. Store in a dry location to prevent corrosion of the steel legs and joint.
