Value Collection NVA3020 Straight Needle Valve 10000 Psi

Product Description

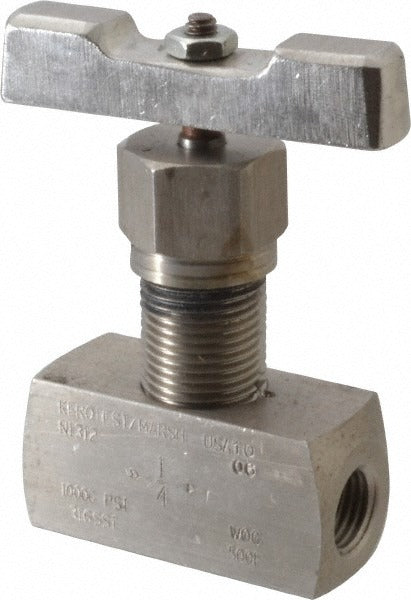

The VALUE COLLECTION NVA3020 is a straight-pattern needle valve built for high-pressure fluid and gas control in demanding industrial and mechanical applications. Constructed from 316 stainless steel, this valve handles working pressures up to 10,000 psi and temperatures ranging from -100 degrees F to 800 degrees F. The hard seat design provides precise flow control and a reliable shutoff. It threads onto 1/4 inch pipe connections, making it a compact but capable component for tight plumbing configurations. Licensed plumbers, pipefitters, and industrial maintenance technicians typically specify this style of valve where fine throttling control and high-pressure integrity are both required.

This needle valve is suited for high-pressure hydraulic lines, instrumentation tubing, chemical processing systems, and steam or compressed-gas service where a hard seat straight-pattern configuration is specified. The 316 stainless steel body resists corrosion in aggressive media, including chloride-bearing environments and many acidic or caustic process fluids. It is appropriate for both commercial and industrial installations where broad temperature swings and sustained high-pressure conditions are part of normal operation.

Key Features

• 316 stainless steel body for corrosion resistance in aggressive service environments
• Hard seat design delivers precise throttling and positive shutoff
• Rated to 10,000 psi maximum working pressure
• Operating temperature range of -100 degrees F to 800 degrees F
• Straight-pattern flow path for in-line plumbing configurations
• 1/4 inch pipe thread connection for compact, direct installation

Compatibility

Designed as a straight-pattern hard seat needle valve for 1/4 inch pipe connections in high-pressure fluid, gas, and instrumentation systems requiring 316 stainless steel construction.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with high-pressure system safety requirements. Depressurize and isolate the line completely before removing or installing any valve. Apply appropriate thread sealant rated for the service pressure and fluid type. Verify that all downstream components are rated to handle the system working pressure before returning the line to service.
