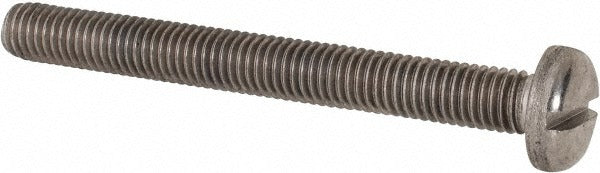

Value Collection MSPXX08075-025BX M8x1.25 Pan Head Screw

Product Description

The VALUE COLLECTION MSPXX08075-025BX is a metric pan head machine screw with a slotted drive, manufactured from Grade 316 stainless steel with a bright, uncoated finish. It carries an M8x1.25 thread size and a 75 mm length measured under the head, conforming to DIN 85 dimensional standards. Grade 316 stainless steel provides strong resistance to corrosion and oxidation, making this fastener well suited for wet, coastal, or chemically exposed environments. Plumbers, pipefitters, HVAC technicians, and general mechanical contractors install screws of this type when fastening panels, brackets, or equipment housings where corrosion resistance is a priority.

This screw is used in a wide range of commercial and industrial assembly applications where metric fasteners and stainless steel material are specified. Typical uses include securing access panels, junction boxes, equipment enclosures, and structural brackets. It is supplied without a washer and is intended for use in applications where DIN 85 pan head geometry is called out in engineering drawings or maintenance specifications. The slotted drive allows installation with a standard flat-blade screwdriver or matching power bit.

Key Features

• M8x1.25 metric thread for use in pre-tapped holes or with matching metric nuts
• Pan head profile per DIN 85 standard provides a low-profile bearing surface
• Slotted drive compatible with flat-blade screwdrivers and power tools
• Grade 316 stainless steel offers superior corrosion resistance compared to Grade 304
• Bright, uncoated finish maintains dimensional integrity for close-tolerance applications
• No washer included; install with a separate washer where bearing surface requirements demand it

Compatibility

Designed as a DIN 85 standard metric pan head machine screw for use in any application specifying an M8x1.25 thread, 75 mm length under head, and Grade 316 stainless steel material.

Installation Notes

Installation should be performed by a qualified technician familiar with metric fastener torque requirements and material compatibility. Verify that the mating thread or nut material is compatible with Grade 316 stainless steel to prevent galling during assembly — use anti-seize compound on stainless fastener threads when recommended by the equipment manufacturer. Always confirm hole size and thread engagement depth before final tightening. Follow applicable mechanical codes and equipment manufacturer specifications for fastener torque values.
