Value Collection MSOXX08100-025BX M8x1.25 Oval Head Screw

Product Description

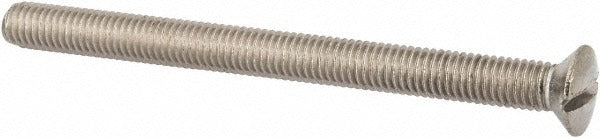

The VALUE COLLECTION MSOXX08100-025BX is an oval head slotted machine screw manufactured from Grade 316 stainless steel with a bright, uncoated finish. It carries an M8x1.25 thread size and measures 100 millimeters in overall length. Grade 316 stainless steel provides strong resistance to corrosion and pitting, making this fastener well suited for demanding environments where moisture, chemicals, or salt exposure are concerns. The slotted drive accepts a standard flat-blade screwdriver. This screw conforms to DIN 964 dimensional standards. It is used by electricians, plumbers, HVAC technicians, mechanical contractors, and general tradespeople wherever a metric fastener with an oval-profile head is required.

This fastener is appropriate for use in residential and commercial applications where a low-profile, finished appearance is needed at the fastening point. The oval head sits slightly above the mating surface with a countersunk underside, giving a clean seating profile when driven into a countersunk hole. Typical install scenarios include panel assembly, equipment enclosures, brackets, and general mechanical assembly work in corrosive or marine-adjacent environments. The metric M8 thread pitch is compatible with standard metric tapped holes and hex nuts to DIN specifications.

Key Features

• Grade 316 stainless steel construction for superior corrosion and chemical resistance
• Oval head profile with countersunk underside provides a low-profile, finished appearance
• M8x1.25 metric thread conforms to DIN 964 dimensional standard
• 100 millimeter overall length accommodates medium-depth fastening applications
• Bright, uncoated finish maintains dimensional accuracy and is weld-spatter resistant
• Slotted drive works with standard flat-blade screwdrivers — no specialty bit required

Compatibility

Designed for use in any application requiring an M8x1.25 metric machine screw to DIN 964 specifications, including metric-tapped holes and standard metric hardware assemblies.

Installation Notes

This fastener is installed by mechanical, electrical, or plumbing tradespeople during equipment assembly or panel work. Power down and de-energize any equipment before fastener installation in electrical or control enclosures. Use a properly sized flat-blade screwdriver to avoid cam-out and head damage. Do not overtighten stainless steel fasteners into stainless tapped holes without lubrication, as galling can occur — apply an appropriate anti-seize compound where metal-to-metal contact is expected.
