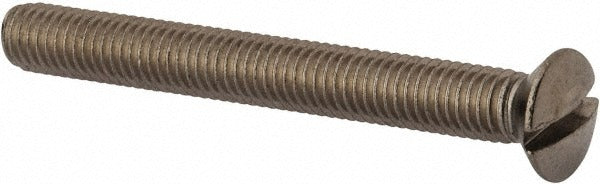

Value Collection MSOX08070-025BX M8x1.25 Oval Head Screw Din 964

Product Description

The VALUE COLLECTION MSOX08070-025BX is a metric machine screw with an oval head and slotted drive, manufactured to DIN 964 standards. It features an M8x1.25 thread and a 70 mm overall length. The fastener is made from 18-8 stainless steel (A2 grade) with a bright, uncoated finish, making it suitable for applications where corrosion resistance and a clean appearance are required. This screw is commonly installed by millwrights, maintenance technicians, and mechanical contractors working on equipment assemblies, enclosures, and structural fixtures. It is sold in a minimum order quantity of 25 pieces per box.

This screw is designed for metric threaded assemblies where a low-profile oval head is required to sit flush or slightly above the mating surface. The slotted drive accommodates standard flat-blade screwdrivers and is widely used in panel assembly, equipment mounting, and light structural fastening across industrial, commercial, and maintenance applications. The stainless steel construction with A2 grade material makes it appropriate for moderately corrosive or outdoor environments.

Key Features

• M8x1.25 metric thread for compatibility with standard metric tapped holes
• Oval head profile provides a low-profile countersunk appearance without full flush seating
• Slotted drive for use with flat-blade screwdrivers and bits
• 18-8 stainless steel, A2 grade, offers good corrosion resistance in moderate environments
• Bright, uncoated finish for clean appearance and dimensional consistency
• Manufactured to DIN 964 standard for dimensional accuracy and interchangeability

Compatibility

Designed as a DIN 964-compliant metric machine screw suitable for use in any M8x1.25 threaded application requiring an oval head, slotted drive fastener.

Installation Notes

Installation is performed using a flat-blade screwdriver or slotted bit matched to the head recess dimensions. Ensure the mating hole is properly tapped to M8x1.25 before installation. Do not use impact drivers at full torque without a torque-limiting attachment, as slotted drives are prone to cam-out. When installing stainless steel fasteners into stainless steel tapped holes, apply an appropriate anti-seize compound to prevent galling.
