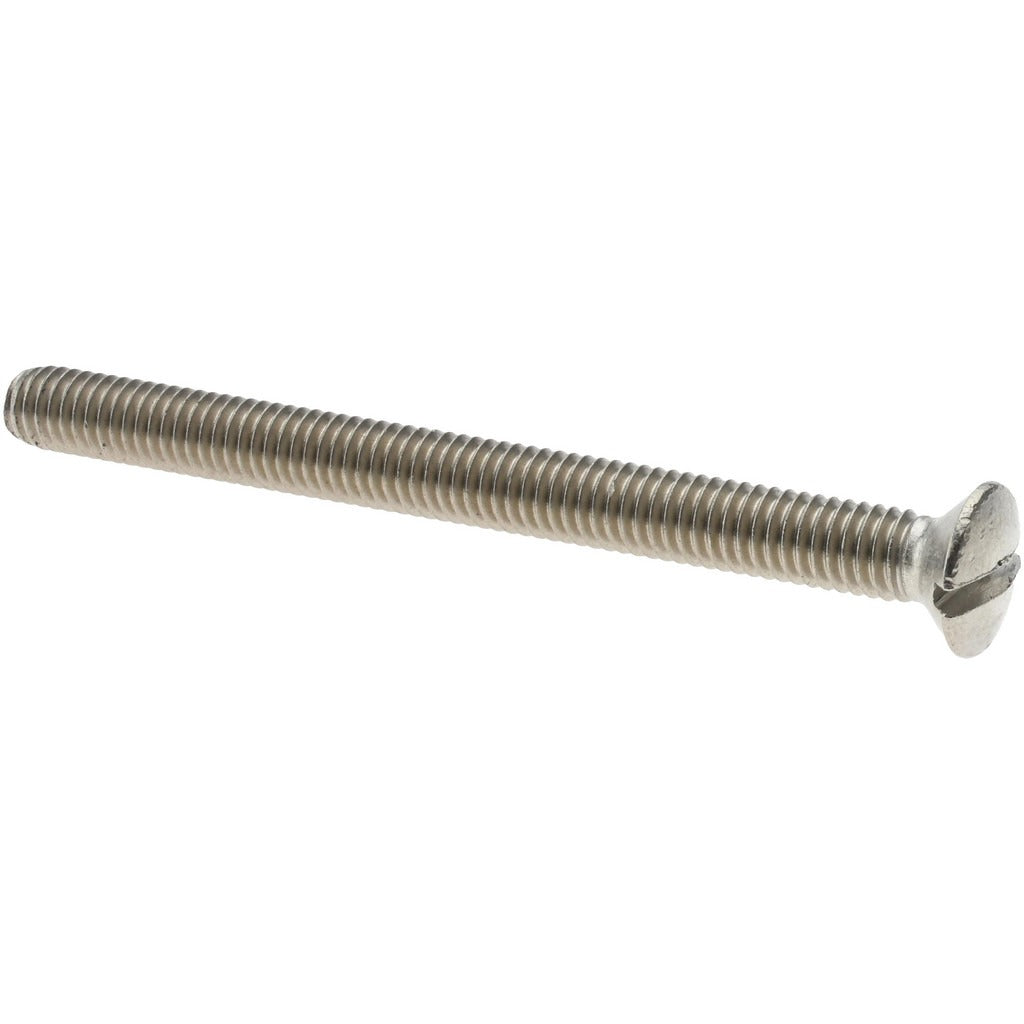

Value Collection MSOX06070-050BX M6x1 Oval Slotted Screw 50pk

Product Description

The VALUE COLLECTION MSOX06070-050BX is an M6x1 thread, 70mm overall length oval head machine screw manufactured from 18-8 stainless steel with a bright, uncoated finish. The oval head profile sits partially countersunk into the mating surface, producing a low-profile, finished appearance. The slotted drive accepts a standard flat-blade screwdriver. Grade 18-8 (A2) stainless steel provides good corrosion resistance in moderate-exposure environments. These screws are supplied in a minimum order quantity of 50 units and conform to DIN 964 dimensional standards. Machinists, maintenance technicians, and assembly workers install this fastener type in light industrial, commercial, and OEM equipment applications.

This fastener is suited for metric-threaded assemblies requiring a flush or semi-flush head appearance. Common applications include panel assembly, sheet metal work, enclosure fabrication, and equipment maintenance where a slotted oval head provides the necessary clearance and appearance. The 70mm overall length accommodates moderate material stack-up without the need for additional hardware such as a washer under the head. No washer is included or required under the head per DIN 964 specification.

Key Features

• M6x1 metric thread with 70mm overall length per DIN 964 standard
• Oval (countersunk) head profile for low-profile, semi-flush seating
• Slotted drive compatible with standard flat-blade screwdrivers
• 18-8 (A2) stainless steel construction for corrosion resistance in moderate environments
• Bright, uncoated finish with no surface treatment that could affect thread fit
• Supplied in quantities of 50 units per order

Compatibility

Designed as a metric DIN 964 oval head machine screw for use in M6x1-threaded assemblies across light industrial, commercial equipment, and OEM manufacturing applications.

Installation Notes

Installation is performed by machinists or maintenance technicians using a flat-blade screwdriver sized to the slot. The mating hole should be properly countersunk to the DIN 964 specified angle to allow the oval head to seat correctly. Power down or de-energize any equipment before servicing fasteners on live assemblies. Avoid over-torquing, which can strip the slot or distort the stainless threads.
