Value Collection MSFXX08045-025BX M8x1.25 Flat Head Screw 316 Ss

Product Description

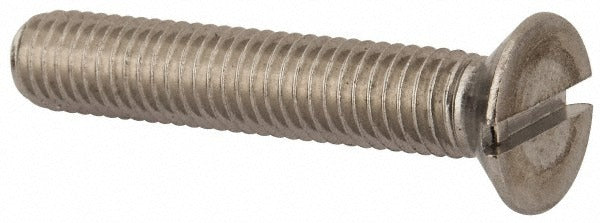

The VALUE COLLECTION MSFXX08045-025BX is a flat head slotted machine screw manufactured from Grade 316 (A4) stainless steel with a bright, uncoated finish. This metric fastener follows the DIN 963 standard and features an M8x1.25 thread with an overall length of 45 millimeters. The flat head profile sits flush with the mating surface when fully driven, making it well suited for applications where a smooth, low-profile finish is required. Grade 316 stainless steel provides elevated corrosion resistance compared to 303 or 304 grades, particularly in chloride-rich or marine environments. Sold in boxes of 25 pieces.

This screw is appropriate for general mechanical assembly, structural fastening, and equipment fabrication where metric hardware and corrosion resistance are required. Typical installation environments include marine hardware, food-processing equipment, chemical processing assemblies, and outdoor structural components. The slotted drive accommodates a standard flat-blade screwdriver, and the flush seating geometry suits countersunk through-holes machined or drilled to DIN 963 specifications.

Key Features

• M8x1.25 metric thread with 45 millimeter overall length per DIN 963 standard
• Grade 316 (A4) stainless steel construction for superior corrosion resistance in harsh environments
• Flat head profile seats flush with the mating surface in countersunk holes
• Slotted drive compatible with standard flat-blade screwdrivers
• Bright, uncoated finish — no added plating that could affect dimensional tolerance or galvanic interaction
• Sold as a box of 25 screws (minimum order quantity of 25)

Compatibility

Designed for use in countersunk holes machined to DIN 963 specifications accepting an M8x1.25 metric thread. Suitable for metric assemblies requiring a flush-seating flat head fastener in stainless steel.

Installation Notes

Installation is performed with a flat-blade screwdriver sized to match the DIN 963 slot dimensions for M8 screws. Countersink the mating hole to the correct DIN 963 angle before driving to avoid cracking or misalignment of the head. When fastening stainless steel screws into stainless steel tapped holes, apply an appropriate anti-seize compound to reduce the risk of galling. Verify thread engagement depth meets the requirements of the applicable mechanical or structural specification before final torque is applied.
