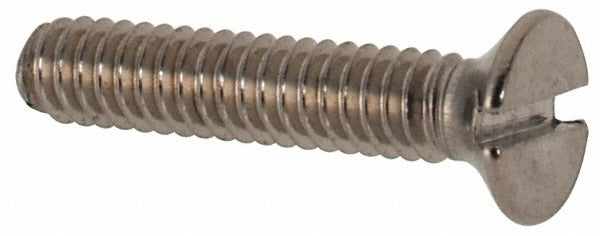

Value Collection MSFXX02010-050BX M2x0.4 Flat Head Slotted Screw

Product Description

The VALUE COLLECTION MSFXX02010-050BX is a metric flat head slotted machine screw manufactured from Grade 316 stainless steel (A4) with a bright, uncoated finish. It carries an M2x0.4 thread and a 10 mm overall length. The flat head profile sits flush with or below the mating surface when fully driven, making it well suited for assemblies where a low-profile fastener is required. These screws conform to DIN 963, the standard governing slotted countersunk flat head screws. Machinists, maintenance technicians, and fabricators working on equipment that demands corrosion-resistant hardware will specify this grade for marine, food-service, and chemical-exposure environments.

This screw is applied in precision mechanical assemblies, instrument panels, electronic enclosures, and light structural connections where an M2 thread size is called out. The stainless steel Grade 316 construction provides elevated resistance to chlorides and acidic environments compared to Grade 304. The DIN 963 standard ensures dimensional interchangeability with other compliant M2x0.4 flat head slotted fasteners. This SKU is sold as a box of 50 pieces, meeting the minimum order quantity, and is appropriate for shop stock or project-specific kitting.

Key Features

• M2x0.4 metric thread, 10 mm overall length per DIN 963
• Grade 316 A4 stainless steel for superior corrosion resistance in chloride and harsh chemical environments
• Flat head profile creates a flush or countersunk installation without a protruding head
• Slotted drive compatible with standard flat-blade screwdrivers and automated assembly tooling
• Bright, uncoated finish maintains true stainless surface integrity with no plating to chip or delaminate
• Box of 50 pieces supports small-batch jobs and bench-stock replenishment

Compatibility

Designed as a DIN 963-compliant M2x0.4 flat head slotted machine screw suitable for use in any application specifying that standard and thread designation.

Installation Notes

Installation is performed by machinists or mechanical technicians using a flat-blade screwdriver or matching automated driver bit sized for an M2 slotted head. The mating component should have a properly sized and countersunk clearance hole to achieve a flush seating of the flat head. De-energize or lock out any equipment before fastener removal or installation on live assemblies. Avoid over-torquing M2 screws, as the small cross-section of stainless steel fasteners at this diameter is susceptible to galling and shear if excessive force is applied.
