Value Collection MSFX02504-100BX M2.5x0.45 Flat Head Screw

Product Description

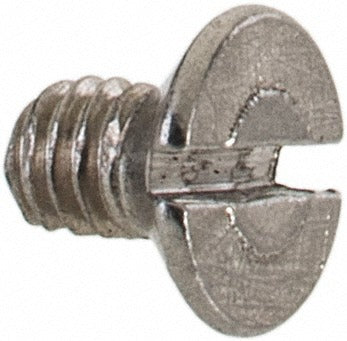

The VALUE COLLECTION MSFX02504-100BX is a metric flat head slotted machine screw manufactured from 18-8 stainless steel with a bright, uncoated finish. Conforming to DIN 963, this fastener features an M2.5x0.45 thread profile and a 4 mm overall length. The countersunk flat head sits flush with the mating surface when installed in a properly chamfered hole, making it a standard choice for panels, enclosures, and assemblies where a low-profile fastener is required. Each box contains 100 pieces. Installed by machinists, electricians, and field technicians across light manufacturing, electrical, and HVAC control-panel applications.

This screw is suited for metric fastening applications in residential and commercial equipment assemblies, instrument panels, electronic enclosures, and general mechanical assemblies where corrosion resistance is a priority. The 18-8 grade stainless steel construction provides reliable performance in mildly corrosive and high-humidity environments. The slotted drive is compatible with standard flat-blade screwdrivers. No washer is required under the head for typical flush-mount applications per DIN 963 specification.

Key Features

• DIN 963 standard flat head profile seats flush in countersunk holes
• M2.5x0.45 metric thread for precision fastening in small-diameter applications
• 18-8 A2 stainless steel construction resists corrosion and oxidation
• Bright, uncoated finish maintains dimensional accuracy without added coating thickness
• Slotted drive accepts standard flat-blade screwdrivers
• Sold in a box of 100 pieces to support production and service inventory needs

Compatibility

Designed as a DIN 963 metric flat head slotted machine screw for use in any application requiring an M2.5x0.45 thread with a countersunk flat head seating profile.

Installation Notes

Installation requires a properly countersunk or pre-tapped hole conforming to DIN 963 dimensions to achieve a flush seating surface. Use a correctly sized flat-blade screwdriver to avoid cam-out and head damage. De-energize and lock out any electrical or mechanical equipment before installing or removing fasteners in live panels or assemblies. Do not exceed the torque capacity of the M2.5 thread to prevent thread stripping in softer mating materials.
