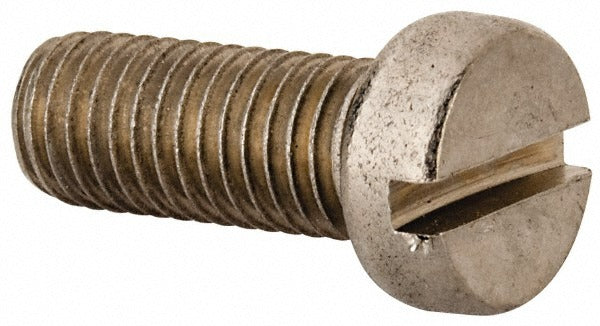

Value Collection MSCXX10025-050BX M10x1.5 Machine Screw Din 84

Product Description

The VALUE COLLECTION MSCXX10025-050BX is a metric fillister head machine screw designed for fastening applications that require corrosion resistance and dimensional accuracy. Built to DIN 84 standards, this screw features an M10x1.5 thread and a 25 mm length measured under the head. The fillister head profile provides a taller, narrower head compared to a pan head, offering more material for the slotted drive to engage and allowing use in countersunk or recessed applications. Grade 316 A4 stainless steel construction gives this fastener excellent resistance to chlorides, acids, and marine environments. The bright, uncoated finish maintains the base material's natural properties. Licensed tradespeople and industrial maintenance professionals install this type of fastener across a wide range of structural and equipment assembly tasks.

This screw is suited for use in marine, chemical processing, food service, and outdoor industrial environments where Grade 316 stainless steel is specified for superior corrosion resistance. The slotted drive accommodates standard flat-blade screwdrivers and is compatible with manual and powered drive tools. The DIN 84 standard ensures dimensional interchangeability with other DIN 84-compliant fasteners of the same size. Typical applications include equipment enclosures, pump and valve assemblies, and structural panel fastening where metric thread standards are required.

Key Features

• M10x1.5 metric thread — standard coarse pitch for broad hardware compatibility
• 25 mm length under head per DIN 84 specification
• Grade 316 A4 stainless steel construction for superior chloride and corrosion resistance
• Fillister head profile provides deep slotted drive engagement and compact head footprint
• Bright, uncoated finish — no coating variability affecting thread fit or torque values
• DIN 84 standard ensures dimensional interchangeability with compliant components

Compatibility

Designed as a DIN 84-compliant M10x1.5 fillister head machine screw suitable for use with standard metric M10 nuts, threaded inserts, and tapped holes meeting DIN or ISO metric thread specifications.

Installation Notes

Install using a flat-blade screwdriver or powered driver sized to fit the slotted head recess without slipping. Verify that mating threads are clean, undamaged, and free of debris before installation. Do not exceed the fastener material's torque limitations; refer to applicable engineering references for Grade 316 stainless steel M10 torque specifications. Stainless steel fasteners are susceptible to galling — apply an appropriate anti-seize compound to the threads when the application permits.
