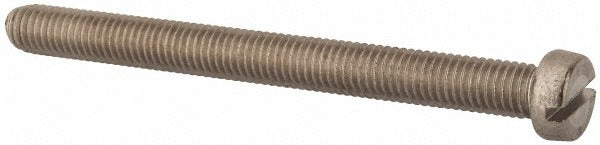

Value Collection MSCXX08090-025BX M8x1.25 Fillister Screw

Product Description

The VALUE COLLECTION MSCXX08090-025BX is a metric machine screw with a fillister head and slotted drive, manufactured from Grade 316 (A4) stainless steel with a bright, uncoated finish. It carries an M8x1.25 thread and a 90 mm length measured under the head, conforming to DIN 84 dimensional standards. Grade 316 stainless provides elevated corrosion resistance compared to 304, making it well suited for wet, marine, or chemically active environments. Electricians, plumbers, HVAC technicians, and general tradespeople install this fastener wherever a metric slotted fillister head is required and corrosion resistance is a priority.

This screw is used in light-to-medium assembly applications across mechanical, electrical, and process equipment. The fillister head profile offers a taller head height and deeper slot than a standard pan head, giving a slotted driver more engagement and reducing cam-out risk in repetitive assembly. Typical install scenarios include panel enclosures, instrument housings, pump assemblies, and marine or outdoor equipment where metric hardware and stainless construction are specified. The part ships as a single piece with a minimum order quantity of 5 units.

Key Features

• M8x1.25 metric thread for compatibility with standard metric tapped holes and nuts
• 90 mm length under head suits medium-depth through-hole and tapped-hole assemblies
• Grade 316 A4 stainless steel delivers superior resistance to chloride and saltwater corrosion
• Bright, uncoated finish maintains true dimensional tolerances with no coating buildup on threads
• DIN 84 standard ensures dimensional interchangeability with other DIN 84 compliant fasteners
• Fillister head with slotted drive allows deep driver engagement and reduced cam-out in tight spaces

Compatibility

Designed as a DIN 84 standard metric machine screw suitable for M8x1.25 tapped holes and metric hex nuts in assemblies requiring Grade 316 stainless steel fasteners.

Installation Notes

Install using a correctly sized flat-blade screwdriver matched to the slot dimensions of this DIN 84 fillister head to avoid slot damage. De-energize and lock out any electrical or mechanical equipment before fastener installation or removal per applicable safety procedures. Apply an anti-seize compound when installing stainless fasteners into stainless tapped holes to prevent galling. Do not exceed the rated torque for M8 stainless hardware as published in the applicable fastener specification or project engineering documents.
