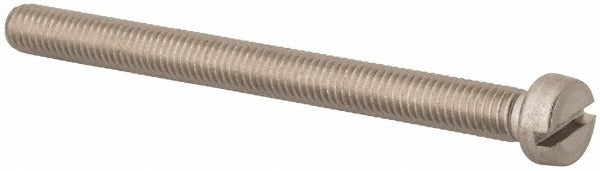

Value Collection MSCXX05060-050BX M5x0.8 Fillister Screw Din 84

Product Description

The VALUE COLLECTION MSCXX05060-050BX is a metric machine screw with a fillister head and slotted drive, manufactured from Grade 316 stainless steel (A4) to DIN 84 standards. The fillister head profile features a smaller diameter and taller head height compared to a pan head, making it well-suited for counterbored clearance holes and close-tolerance assemblies. At M5x0.8 thread pitch and 60 mm length under head, this fastener delivers corrosion resistance appropriate for marine, chemical, and outdoor industrial environments. This box contains 50 screws with a bright, uncoated finish. Mechanical and electrical tradespeople, marine fabricators, and MRO maintenance technicians are the typical end users.

This screw is used in light to medium-duty fastening applications where a recessed or flush-seated head is required. The M5x0.8 coarse thread is a common metric size found in panel assemblies, electrical enclosures, pump housings, and general mechanical equipment. The slotted drive works with standard flat-blade screwdrivers or bit drivers. Grade 316 A4 stainless steel provides elevated resistance to chloride corrosion compared to Grade 304, making it a preferred choice for coastal, marine, and food-service installations.

Key Features

• Grade 316 A4 stainless steel construction for superior chloride and corrosion resistance
• Fillister head profile suits counterbored holes and applications requiring a tall, cylindrical head
• M5x0.8 metric thread with 60 mm length under head per DIN 84 standard
• Slotted drive compatible with standard flat-blade screwdrivers and bit sets
• Bright, uncoated finish — no plating to contaminate sensitive environments
• Sold in a minimum quantity of 50 per order, packaged as one box

Compatibility

Designed for use in any application requiring a DIN 84 metric fillister head machine screw with M5x0.8 thread and 60 mm length under head. Suitable for use with standard M5 metric nuts, inserts, and tapped holes.

Installation Notes

Installation is performed by hand or with a flat-blade screwdriver or power driver fitted with a slotted bit. Apply appropriate torque for M5 stainless steel fasteners to avoid galling — consider applying an anti-seize compound when threading stainless into stainless. De-energize or lock out any electrical equipment before installing fasteners in or near live panels. Follow applicable codes and equipment manufacturer torque specifications for the assembly being serviced.
