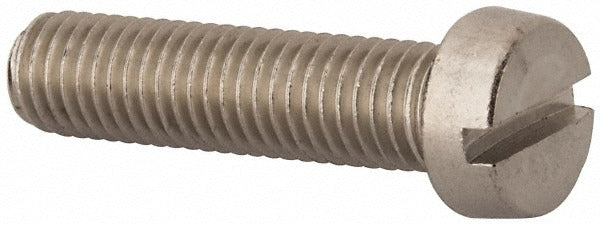

Value Collection MSCX10040-025BX M10x1.5 Machine Screw Din 84

Product Description

The VALUE COLLECTION MSCX10040-025BX is a metric machine screw with a fillister head and slotted drive, manufactured from 18-8 stainless steel (Grade A2) with a bright, uncoated finish. This fastener carries an M10x1.5 thread size and measures 40 mm under the head, conforming to DIN 84 dimensional standards. The fillister head profile provides a taller, narrower head than a pan head, offering more engagement surface for the slotted driver and a cleaner bearing face against the workpiece. It is installed by maintenance technicians, millwrights, and fabricators wherever a corrosion-resistant metric fastener is required.

This screw is suited for general mechanical assemblies, light structural connections, and equipment fabrication in industrial, marine, and food-service environments where stainless steel is specified for corrosion resistance. The DIN 84 standard ensures dimensional interchangeability with other DIN 84-compliant components. Typical applications include panel mounting, machinery guards, enclosure assembly, and similar metal-to-metal fastening tasks where metric threading is required.

Key Features

• M10x1.5 metric thread for compatibility with standard DIN 84 metric hardware
• Fillister head profile provides deep driver engagement and a compact bearing surface
• 18-8 stainless steel (Grade A2) offers strong corrosion resistance in wet and chemical-exposure environments
• Bright, uncoated finish maintains true stainless appearance with no additional coating buildup on threads
• 40 mm length measured under the head for consistent fastener selection in close-tolerance assemblies
• Conforms to DIN 84 standard for dimensional interchangeability

Compatibility

Designed as a DIN 84-compliant metric machine screw for use with standard M10x1.5 threaded holes, tapped components, and hex nuts or coupling nuts conforming to metric DIN standards.

Installation Notes

Installation is performed with a flat-blade screwdriver or slotted driver bit sized for the M10 fillister head. Ensure the mating thread is clean and free of debris before driving. Apply appropriate torque using a calibrated torque wrench or driver to avoid galling, which is a known risk with stainless steel fasteners — use an anti-seize compound on the threads when required by the application. Verify thread engagement depth meets the requirements of the applicable assembly drawing or mechanical code before final torque.
