Value Collection MSCX10016-050BX M10x1.5 Machine Screw Din 84

Product Description

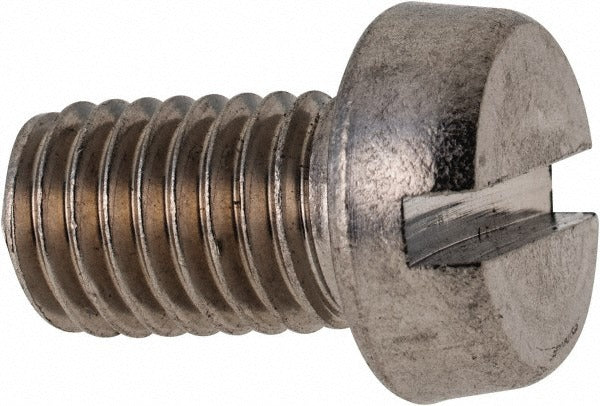

The VALUE COLLECTION MSCX10016-050BX is a metric fillister head machine screw designed for general industrial fastening applications. It features a slotted drive and is manufactured from 18-8 stainless steel to Grade A2, providing solid corrosion resistance in wet or chemically exposed environments. The fillister head profile offers a taller, narrower head than a standard pan head, giving a greater bearing surface in counterbored holes. Dimensions conform to DIN 84, with an M10x1.5 thread and a 16 mm length measured under the head. This screw ships with a bright, uncoated finish and is sold in a minimum quantity of five pieces per order.

This screw suits precision assemblies, enclosures, machinery, and equipment where a metric thread standard is required. The DIN 84 specification makes it a common replacement or supplemental fastener in European-standard equipment, industrial automation systems, and marine or food-service hardware where 18-8 stainless is preferred over plated carbon steel. Machinists, millwrights, and maintenance technicians typically install and service this type of fastener.

Key Features

• M10x1.5 metric thread for compatibility with DIN 84 standard applications
• Fillister head profile suits counterbored holes and close-clearance assemblies
• Slotted drive accepts standard flat-blade screwdrivers and driver bits
• 18-8 stainless steel at Grade A2 provides corrosion and oxidation resistance
• Bright, uncoated finish — no plating compounds to interfere with threaded fits
• 16 mm length under head in full conformance with DIN 84 geometry

Compatibility

Designed as an OEM-style replacement or standard metric fastener for equipment calling out DIN 84 fillister head screws in M10x1.5 thread size.

Installation Notes

Installation is performed by machinists, millwrights, or maintenance technicians using a flat-blade screwdriver or slotted power driver bit sized for M10 fillister heads. Ensure mating threads are clean and free of debris before driving. Do not exceed the rated torque capacity of the stainless threads, as 18-8 stainless can be susceptible to galling — use an appropriate anti-seize compound if specified by the equipment manufacturer. Always verify thread engagement depth meets the assembly drawing requirements before final torque.
