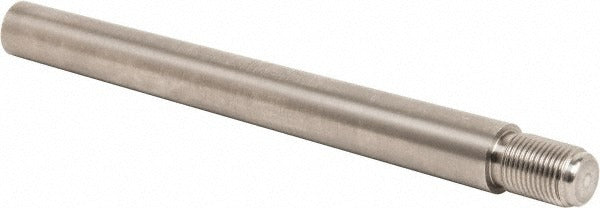

Value Collection MSC67707364X Threaded Taper Pin Size 10

Product Description

The VALUE COLLECTION MSC67707364X is a Size 10 threaded taper pin machined from Grade 303 18-8 stainless steel with a passivated finish for corrosion resistance. The pin measures 6 inches in length with a large-end diameter of 0.704 inches and is threaded 5/8-18 at the large end to accept a nut for positive retention. Taper pins are used to secure hubs, collars, and levers to shafts in assemblies where precise alignment and removable fastening are required. This pin meets AN386 standards and is suited for aerospace, industrial, and mechanical assembly applications.

Threaded taper pins of this size are commonly installed in moderate-to-heavy-duty mechanical assemblies requiring a reliable, removable pin connection. The 5/8-18 thread allows a nut to be applied at the large end, preventing the pin from backing out under vibration or dynamic loading. Typical applications include shaft-to-hub connections, linkage assemblies, and fixtures where repeatable disassembly and reassembly is needed without loss of alignment. The passivated stainless steel construction makes this pin appropriate for environments where moisture or mild chemical exposure is a concern.

Key Features

• Size 10 taper pin with 0.704 inch large-end diameter for positive shaft and hub alignment
• 6 inch pin length accommodates deeper assemblies and thicker hub sections
• 5/8-18 threaded large end accepts a standard nut for positive retention under vibration
• Grade 303 18-8 stainless steel construction provides strength and corrosion resistance
• Passivated finish enhances surface corrosion resistance without adding significant dimension
• Meets AN386 standard for threaded taper pins
• Maximum diameter tolerance of 0.0013 inches for consistent fit across matched tapered holes

Compatibility

Designed as a standard AN386-compliant threaded taper pin for use in tapered-hole assemblies sized to accept a Size 10 taper pin with a 5/8-18 threaded large end.

Installation Notes

Threaded taper pins are typically installed by machinists or maintenance technicians using a tapered reamer to prepare a matched hole, followed by driving the pin with a hammer and pin punch. Always de-energize and lock out equipment before servicing any assembly containing taper pins. Apply the nut to the threaded end and tighten to retain the pin after seating. Never force an oversized pin into an undersized hole, as this can crack the hub or distort the bore.
