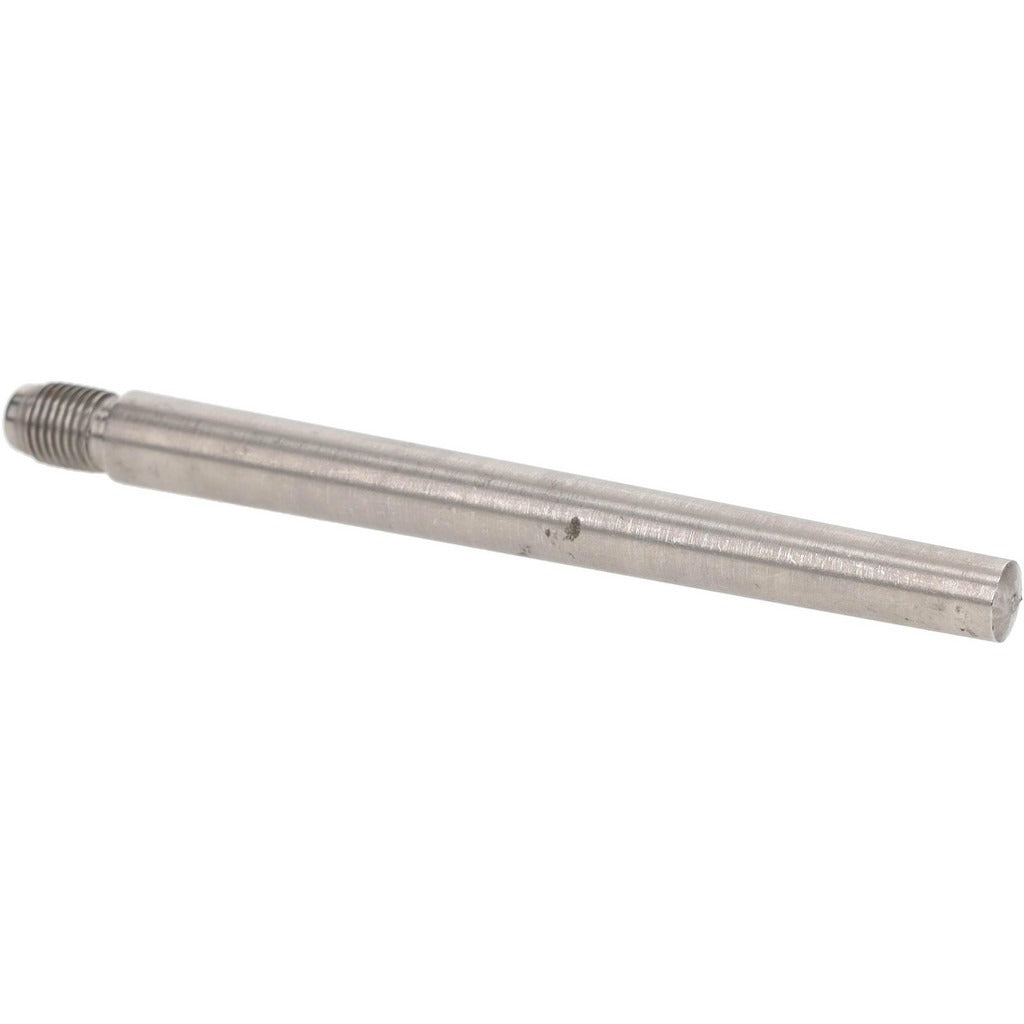

Value Collection MSC67706762X Threaded Taper Pin Size 7

Product Description

The VALUE COLLECTION MSC67706762X is a Size 7 threaded taper pin manufactured from 303 grade 18-8 stainless steel with a passivated finish. The pin measures 4 inches in length with a large end diameter of 0.407 inches and a neck diameter of 0.315 inches. The 3/8-24 threaded end allows for positive extraction using a standard nut and puller, making removal straightforward even in tight assemblies. This pin meets AN386 standards, making it appropriate for aerospace, industrial, and mechanical assembly applications where corrosion resistance and dimensional consistency are required. Machinists, maintenance technicians, and assembly line personnel are the typical installers.

This threaded taper pin is suited for use in mechanical assemblies where a secure, removable connection between a shaft and hub or between two mating components is needed. The passivated stainless steel construction resists corrosion in wet, chemical, or outdoor environments. The 3/8-24 threaded end is compatible with standard extraction tooling. Applications include industrial machinery, marine hardware, and precision mechanical assemblies requiring a pin that meets AN386 dimensional and material standards.

Key Features

• Size 7 taper pin with 4-inch pin length and 0.407-inch large end diameter
• 303 grade 18-8 stainless steel construction for corrosion resistance
• Passivated finish for enhanced surface protection
• 3/8-24 threaded end for controlled extraction with standard tooling
• Meets AN386 standards for dimensional and material compliance
• Neck diameter of 0.315 inches with maximum diameter tolerance of 0.0013 inches

Compatibility

Designed as an AN386-compliant Size 7 threaded taper pin for use in industrial, mechanical, and precision assembly applications requiring 3/8-24 threaded extraction.

Installation Notes

Installation and removal should be performed by qualified mechanical technicians familiar with taper pin assemblies. Always ensure the mating hole is properly reamed to the correct taper before driving the pin to avoid damage to the bore or the pin itself. Use a standard taper pin extraction nut threaded onto the 3/8-24 end to remove the pin without impact damage. De-energize and lock out any equipment before servicing components that contain taper pins.
