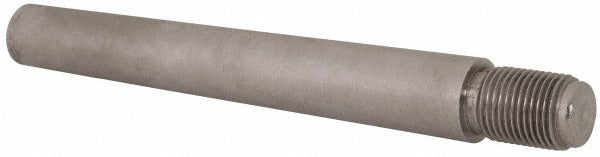

Value Collection MSC67705889X Threaded Taper Pin Size 10

Product Description

The VALUE COLLECTION MSC67705889X is a Size 10 threaded taper pin machined from C-12L14 steel and left uncoated. It features a large end diameter of 0.704 inches and a pin length of 5 inches. The 5/8-18 threaded end allows for mechanical extraction, making removal straightforward in service situations. This pin is used to secure hubs, collars, and mating components on shafts where precise alignment and positive retention are required. Machinists, maintenance technicians, and mechanical assemblers install taper pins as a standard method of locking components in repeatable, fixed positions.

This threaded taper pin is suited for general industrial and mechanical assembly applications where a removable, self-locking fastener is needed. The tapered geometry creates an interference fit as the pin is driven, eliminating play between mated parts. The 5/8-18 threaded end allows a nut or puller to be used for controlled extraction without damaging surrounding components. Typical installation environments include machine tools, drive shafts, gearboxes, and structural assemblies where alignment repeatability and vibration resistance are priorities.

Key Features

• Size 10 taper pin with 0.704 inch large end diameter for precise interference fit
• 5 inch pin length accommodates a range of hub and collar widths
• 5/8-18 threaded end enables mechanical extraction without pin damage
• C-12L14 steel grade provides good machinability and consistent dimensional tolerancing
• Uncoated finish maintains base material dimensions for accurate fitment
• Meets AN386 standards for dimensional and material conformance

Compatibility

Designed as a standard Size 10 threaded taper pin conforming to AN386 specifications, suitable for use in assemblies requiring a 0.704 inch large end diameter taper pin with a 5/8-18 threaded extraction end.

Installation Notes

Taper pins are typically installed by machinists or maintenance mechanics using a pin punch and hammer or an arbor press. The mating hole should be reamed to the correct taper before installation to ensure full contact along the pin length. Always de-energize, lock out, and tag out any machinery before servicing components secured by taper pins. Use the threaded end with an appropriate nut or slide hammer puller for removal to avoid deforming the pin or the surrounding bore.
